Matplotlib - 選單部件



介紹

在 Matplotlib 庫中,我們沒有特定的選單部件,在其核心功能中,雖然沒有內建的選單部件,但我們可以透過將 Matplotlib 與其他庫(如 Tkinter 或 PyQt)結合來實現類似的功能。

在這裡,我們將看到使用 Tkinter 結合 Matplotlib 進行繪圖建立簡單選單的概述。Tkinter 是 Python 的標準 GUI(即圖形使用者介面)庫,可用於建立互動式選單和視窗。

使用 Tkinter 在 Matplotlib 中建立選單的概述

以下是使用 Tkinter 庫在 matplotlib 庫中建立選單的關鍵點。

Tkinter 整合

Tkinter 是一個功能強大的 GUI 庫,可以很好地與 Matplotlib 整合。我們使用 Tkinter 建立主應用程式視窗、選單和處理使用者互動。

Matplotlib 圖形和畫布

Matplotlib 圖形和畫布使用FigureCanvasTkAgg嵌入到 Tkinter 應用程式中。這允許 Matplotlib 圖形在 Tkinter 視窗中顯示。

選單建立

我們使用tk.Menu()建立選單欄,並新增各種選單項以及關聯的操作。這裡我們使用檔案選單下的開啟退出以及繪圖選單下的繪製資料等選單項。

選單操作

定義了open_fileplot_data等函式來指定與每個選單項關聯的操作。例如,開啟選單項會呼叫檔案對話方塊以開啟檔案,而繪製資料選單項會在 Matplotlib 軸上繪製一條簡單的線。

選單級聯

選單級聯是使用add_cascade()建立的。這允許我們將相關選單項組織在公共選單標題下。

執行 Tkinter 主迴圈

root.mainloop()呼叫啟動 Tkinter 主迴圈,應用程式在此等待使用者互動。

使用 Tkinter 建立選單部件的步驟

以下是使用 Tkinter 庫在 matplotlib 庫中建立選單部件需要遵循的步驟。

匯入必要的庫

首先,我們必須使用以下程式碼行匯入 Matplotlib 庫進行繪圖和 Tkinter 庫進行 GUI 元件。

import tkinter as tk
from tkinter import filedialog
import matplotlib.pyplot as plt
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg

建立 Tkinter 應用程式

匯入所需的庫後,我們必須建立一個 Tkinter 應用程式並設定主視窗。

import tkinter as tk
from tkinter import filedialog
import matplotlib.pyplot as plt
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg
root = tk.Tk()
root.title("Matplotlib Menu Widget")

建立 Matplotlib 圖形和軸

之後,我們必須使用以下程式碼行在 Tkinter 應用程式中建立 Matplotlib 圖形和軸。

示例

import tkinter as tk
from tkinter import filedialog
import matplotlib.pyplot as plt
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg
root = tk.Tk()
root.title("Matplotlib Menu Widget")
fig, ax = plt.subplots()
canvas = FigureCanvasTkAgg(fig, master=root)
canvas_widget = canvas.get_tk_widget()
canvas_widget.pack(side=tk.TOP, fill=tk.BOTH, expand=1)
輸出

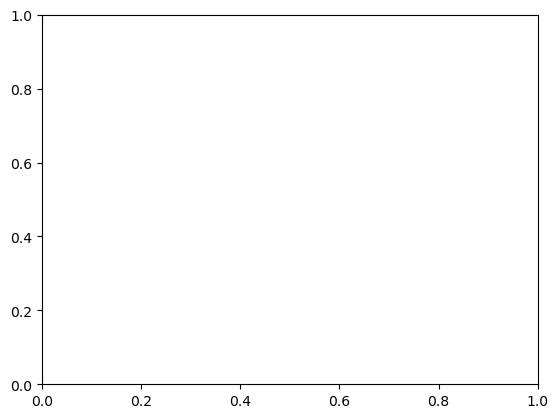

Matplotlib Axes

定義選單操作

在此步驟中,我們必須定義在選擇選單項時將觸發的函式。

def open_file():
   file_path = filedialog.askopenfilename(title="Open File", filetypes=[("Text Files", "*.txt")])
   # Add your file processing logic here
   print(f"File opened: {file_path}")
def plot_data():
   # Add your data plotting logic here
   ax.plot([1, 2, 3], [4, 5, 6])
   canvas.draw()

建立選單並執行 Tkinter 主迴圈

接下來,我們必須建立一個選單欄並新增帶有關聯操作的選單項,然後執行 Tkinter 主迴圈以顯示 GUI。

現在讓我們將所有定義的步驟組合在一起,並使用 tkinter 庫構建選單部件。

示例

import tkinter as tk
from tkinter import filedialog
import matplotlib.pyplot as plt
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg
root = tk.Tk()
root.title("Matplotlib Menu Widget")
canvas = FigureCanvasTkAgg(fig, master=root)
canvas_widget = canvas.get_tk_widget()
canvas_widget.pack(side=tk.TOP, fill=tk.BOTH, expand=1)
def open_file():
   file_path = filedialog.askopenfilename(title="Open File", filetypes=[("Text Files", "*.txt")])
   # Add your file processing logic here
   print(f"File opened: {file_path}")
def plot_data():
   # Add your data plotting logic here
   fig, ax = plt.subplots()
   ax.plot([1, 2, 3], [4, 5, 6])
   canvas.draw()
menu_bar = tk.Menu(root)
file_menu = tk.Menu(menu_bar, tearoff=0)
file_menu.add_command(label="Open", command=open_file)
file_menu.add_separator()
file_menu.add_command(label="Exit", command=root.destroy)
plot_menu = tk.Menu(menu_bar, tearoff=0)
plot_menu.add_command(label="Plot Data", command=plot_data)
menu_bar.add_cascade(label="File", menu=file_menu)
menu_bar.add_cascade(label="Plot", menu=plot_menu)
root.config(menu=menu_bar)
root.mainloop()
輸出
帶有選單部件

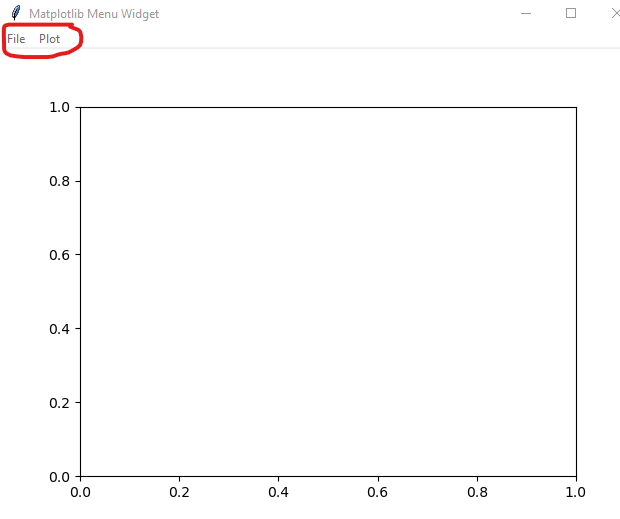

Menu Widget
繪圖資訊顯示

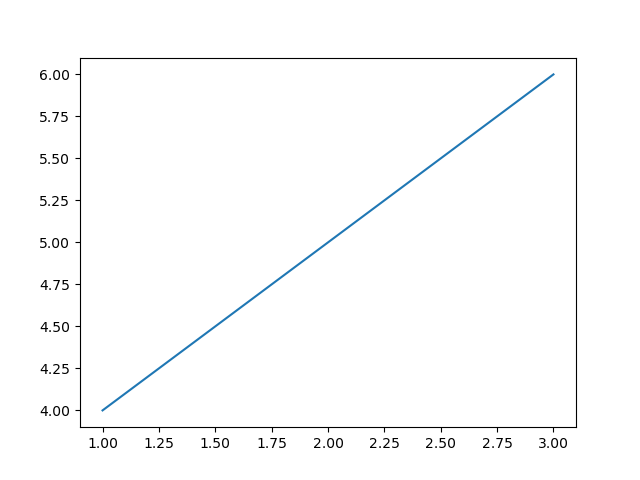

Matplotlib Plot Data

用例

以下是使用 Tkinter 庫的 matplotlib 庫選單部件的用例。

檔案操作 - 使用選單開啟檔案、儲存繪圖或執行各種與檔案相關的操作。

繪圖選項 - 在選單中提供選項以觸發不同型別的繪圖或視覺化不同的資料集。

自定義操作 - 在選單中實現與我們的應用程式相關的特定任務的自定義操作。

與 Matplotlib 部件整合 - 將選單與其他 Matplotlib 部件結合使用以實現更互動式的視覺化。

自定義

選單外觀 - 使用撕下、字型、背景和前景等選項自定義選單、選單項和級聯的外觀。

與 Matplotlib 樣式整合 - 我們可以整合 Matplotlib 樣式以在我們的 Matplotlib 繪圖和 Tkinter GUI 中保持一致的外觀。
