JavaFX - 定位Anchorpane

AnchorPane 允許子節點的邊緣與 AnchorPane 邊緣的偏移量對齊。如果 AnchorPane 設定了邊框和/或填充，則偏移量將從這些內邊距的內邊緣測量。

如果我們在應用程式中使用 AnchorPane，其中的節點將與面板保持特定距離。

名為AnchorPane的類，位於包javafx.scene.layout中，表示 AnchorPane。新增節點後，需要從面板的所有方向（頂部、底部、右側和左側）對其設定錨點。為了設定錨點，此類提供了四種方法，分別是 – setBottomAnchor()，setTopAnchor()，setLeftAnchor()，setRightAnchor()。對於這些方法，需要傳遞一個表示錨點的雙精度值。

示例

以下程式是 AnchorPane 佈局的示例。在這個例子中，我們在 AnchorPane 中插入一個旋轉的圓柱體。同時，我們將其從面板的所有方向（頂部、左側、右側、底部）設定在 50 個單位的距離。

將此程式碼儲存到名為AnchorPaneExample.java的檔案中。

import javafx.animation.RotateTransition;
import javafx.collections.ObservableList;
import javafx.scene.Scene;
import javafx.scene.layout.AnchorPane;
import javafx.scene.paint.Color;
import javafx.scene.paint.PhongMaterial;
import javafx.scene.shape.Cylinder;
import javafx.scene.transform.Rotate;
import javafx.stage.Stage;
import javafx.util.Duration;

public class AnchorPaneExample extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing a Cylinder
      Cylinder cylinder = new Cylinder();

      //Setting the properties of the Cylinder
      cylinder.setHeight(180.0f);
      cylinder.setRadius(100.0f);

      //Preparing the phong material of type diffuse color
      PhongMaterial material = new PhongMaterial();
      material.setDiffuseColor(Color.BLANCHEDALMOND);

      //Setting the diffuse color material to Cylinder5
      cylinder.setMaterial(material);

      //Setting rotation transition for the cylinder
      RotateTransition rotateTransition = new RotateTransition();

      //Setting the duration for the transition
      rotateTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      rotateTransition.setNode(cylinder);

      //Setting the axis of the rotation
      rotateTransition.setAxis(Rotate.X_AXIS);

      //Setting the angle of the rotation
      rotateTransition.setByAngle(360);

      //Setting the cycle count for the transition
      rotateTransition.setCycleCount(RotateTransition.INDEFINITE);

      //Setting auto reverse value to false
      rotateTransition.setAutoReverse(false);

      //playing the animation
      rotateTransition.play();

      //Creating an Anchor Pane
      AnchorPane anchorPane = new AnchorPane();

      //Setting the anchor to the cylinder
      AnchorPane.setTopAnchor(cylinder, 50.0);
      AnchorPane.setLeftAnchor(cylinder, 50.0);
      AnchorPane.setRightAnchor(cylinder, 50.0);
      AnchorPane.setBottomAnchor(cylinder, 50.0);

      //Retrieving the observable list of the Anchor Pane
      ObservableList list = anchorPane.getChildren();

      //Adding cylinder to the pane
      list.addAll(cylinder);

      //Creating a scene object
      Scene scene = new Scene(anchorPane);

      //Setting title to the Stage
      stage.setTitle("Anchor Pane Example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令從命令提示符編譯並執行儲存的 java 檔案。

javac AnchorPaneExample.java
java AnchorPaneExample

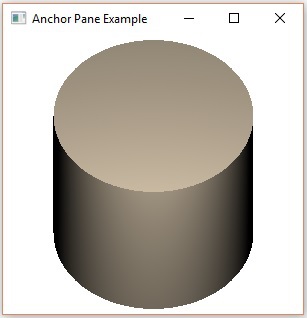

執行後，上述程式將生成如下所示的 JavaFX 視窗。
