JavaFX - 順序過渡

您可以將一個過渡應用於 JavaFX 節點，或者將多個過渡組合在一起。但是，當您想要將多個過渡應用於單個節點時，有兩種不同的方法。

當您想要依次將多個過渡應用於 JavaFX 節點時，順序過渡將應用於 JavaFX 節點。例如，您可以首先使用縮放過渡來增加或減小形狀的大小，然後使用淡出過渡將其淡出。您可以在這些動畫之間暫停一段時間，使用暫停過渡（我們將在後面的章節中學習）。

JavaFX 中的順序過渡

SequentialTransition 類用於按順序在 JavaFX 節點上播放多個過渡。此類屬於 javafx.animation 包。應用於節點的所有過渡都是此類的子過渡，它們繼承其 node 屬性（僅當未指定其自身的節點屬性時）。

示例

下面的程式演示了 JavaFX 中的順序過渡。將此程式碼儲存在名為 SequentialTransitionExample.java 的檔案中。

import javafx.animation.PathTransition;
import javafx.animation.ScaleTransition;
import javafx.animation.SequentialTransition;
import javafx.animation.TranslateTransition;

import javafx.application.Application;

import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.paint.Color;
import javafx.scene.shape.Circle;
import javafx.scene.shape.CubicCurveTo;
import javafx.scene.shape.MoveTo;
import javafx.scene.shape.Path;

import javafx.stage.Stage;
import javafx.util.Duration;

public class SequentialTransitionExample extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing a Circle
      Circle circle = new Circle();

      //Setting the position of the circle
      circle.setCenterX(150.0f);
      circle.setCenterY(135.0f);

      //Setting the radius of the circle
      circle.setRadius(100.0f);

      //Setting the color of the circle
      circle.setFill(Color.BROWN);

      //Setting the stroke width of the circle
      circle.setStrokeWidth(20);

      //Instantiating the path class
      Path path = new Path();

      //Creating the MoveTo path element
      MoveTo moveTo = new MoveTo(100, 150);

      //Creating the Cubic curve path element
      CubicCurveTo cubicCurveTo = new CubicCurveTo(400, 40, 175, 250, 500, 150);

      //Adding the path elements to Observable list of the Path class
      path.getElements().add(moveTo);
      path.getElements().add(cubicCurveTo);

      //Creating path Transition
      PathTransition pathTransition = new PathTransition();

      //Setting the duration for the transition
      pathTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      pathTransition.setNode(circle);

      //Setting the path for the transition
      pathTransition.setPath(path);

      //Setting the orientation of the path
      pathTransition.setOrientation(
         PathTransition.OrientationType.ORTHOGONAL_TO_TAN GENT);

      //Setting the cycle count for the transition
      pathTransition.setCycleCount(5);

      //Setting auto reverse value to false
      pathTransition.setAutoReverse(false);

      //Playing the animation
      pathTransition.play();

      //Creating Translate Transition
      TranslateTransition translateTransition = new TranslateTransition();

      //Setting the duration for the transition
      pathTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      pathTransition.setNode(circle);

      //Setting the length of the transition along x axis
      translateTransition.setByX(300);

      //Setting the cycle count for the stroke
      translateTransition.setCycleCount(5);

      //Setting auto reverse value to false
      translateTransition.setAutoReverse(false);

      //Applying scale Transition to the circle
      ScaleTransition scaleTransition = new ScaleTransition();

      //Setting the duration for the transition
      pathTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      pathTransition.setNode(circle);

      //Setting the dimensions for scaling
      scaleTransition.setByY(1.5);
      scaleTransition.setByX(1.5);

      //Setting the cycle count for the translation
      scaleTransition.setCycleCount(5);

      //Setting auto reverse value to false
      scaleTransition.setAutoReverse(false);

      //Applying Sequential Translation to the circle
      SequentialTransition sequentialTransition = new SequentialTransition(circle,
         pathTransition, translateTransition, scaleTransition );

      //Playing the animation
      sequentialTransition.play();

      //Creating a Group object
      Group root = new Group(circle);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting title to the Stage
      stage.setTitle("Seqiential transition example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令從命令提示符編譯並執行儲存的 java 檔案。

javac --module-path %PATH_TO_FX% --add-modules javafx.controls SequentialTransitionExample.java
java --module-path %PATH_TO_FX% --add-modules javafx.controls SequentialTransitionExample

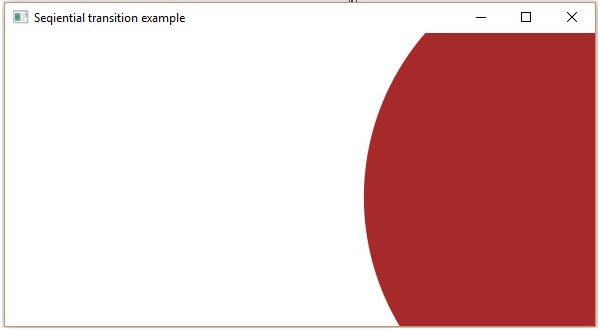

輸出

執行上述程式後，將生成如下所示的 JavaFX 視窗。
