JavaFX - 路徑轉換

JavaFX 中的路徑轉換用於在特定路徑上移動 JavaFX 節點（或物件）。這類似於平移轉換，因為它也使物件從一個位置移動到另一個位置。但是，平移轉換沒有提供物件移動的連續路徑；而路徑轉換則提供了。

任何 JavaFX 節點，例如 2D 或 3D 形狀、文字、影像等，都可以沿著任何路徑移動：直線或曲線。

JavaFX 中的路徑轉換

JavaFX 提供了一個 **PathTransition** 類來在 JavaFX 節點上應用路徑轉換。此類屬於 **javafx.animation** 包。此轉換建立一個路徑動畫，該動畫使物件沿著特定路徑移動並跨越其持續時間。

路徑轉換除了平移物件以重新定位它之外，別無其他作用。這種沿著路徑的平移是透過定期更新節點在 X 和 Y 方向上的座標，以及將方向更新為 OrientationType.ORTHOGONAL_TO_TANGENT 來完成的。動畫路徑由任何 JavaFX 形狀的輪廓定義。

PathTransition 類提供了以下屬性可應用於節點：

**duration** - 此轉換的持續時間。

**node** - 此 PathTransition 的目標節點。

**orientation** - 指定節點沿路徑的垂直方向。

**path** - 節點應在其輪廓上進行動畫處理的形狀。

示例 1

以下是演示 JavaFX 中路徑轉換的程式。將此程式碼儲存在名為 **PathTransitionExample.java** 的檔案中。

import javafx.animation.PathTransition;
import javafx.application.Application;
import static javafx.application.Application.launch;

import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.paint.Color;

import javafx.scene.shape.Circle;
import javafx.scene.shape.CubicCurveTo;
import javafx.scene.shape.MoveTo;
import javafx.scene.shape.Path;

import javafx.stage.Stage;
import javafx.util.Duration;

public class PathTransitionExample extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing a Circle
      Circle circle = new Circle();

      //Setting the position of the circle
      circle.setCenterX(300.0f);
      circle.setCenterY(135.0f);

      //Setting the radius of the circle
      circle.setRadius(25.0f);

      //Setting the color of the circle
      circle.setFill(Color.BROWN);

      //Setting the stroke width of the circle
      circle.setStrokeWidth(20);

      //Instantiating the path class
      Path path = new Path();

      //Creating the MoveTo path element
      MoveTo moveTo = new MoveTo(100, 150);

      //Creating the Cubic curve path element
      CubicCurveTo cubicCurveTo = new CubicCurveTo(400, 40, 175, 250, 500, 150);

      //Adding the path elements to Observable list of the Path class
      path.getElements().add(moveTo);
      path.getElements().add(cubicCurveTo);

      //Creating a path transition
      PathTransition pathTransition = new PathTransition();

      //Setting the duration of the path transition
      pathTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      pathTransition.setNode(circle);

      //Setting the path
      pathTransition.setPath(path);

      //Setting the orientation of the path
      pathTransition.setOrientation(PathTransition.OrientationType.
      ORTHOGONAL_TO_TAN GENT);

      //Setting the cycle count for the transition
      pathTransition.setCycleCount(50);

      //Setting auto reverse value to false
      pathTransition.setAutoReverse(false);

      //Playing the animation
      pathTransition.play();

      //Creating a Group object
      Group root = new Group(circle);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting title to the Stage
      stage.setTitle("Path transition example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令從命令提示符編譯並執行儲存的 java 檔案。

javac --module-path %PATH_TO_FX% --add-modules javafx.controls PathTransitionExample.java
java --module-path %PATH_TO_FX% --add-modules javafx.controls PathTransitionExample

輸出

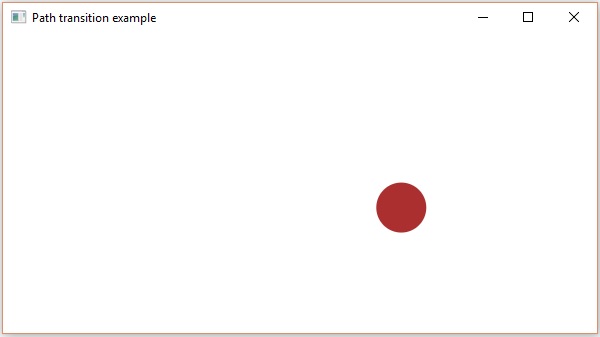

執行後，上述程式生成一個 JavaFX 視窗，如下所示。

示例 2

以下是一個沿著複雜路徑轉換圓形的示例。將此程式碼儲存在名為 **PathTransitionExample2.java** 的檔案中。

import javafx.animation.PathTransition;
import javafx.application.Application;

import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.paint.Color;

import javafx.scene.shape.Circle;
import javafx.scene.shape.LineTo;
import javafx.scene.shape.MoveTo;
import javafx.scene.shape.Path;

import javafx.stage.Stage;
import javafx.util.Duration;

public class PathTransitionExample2 extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing a Circle
      Circle circle = new Circle();

      //Setting the position of the circle
      circle.setCenterX(300.0f);
      circle.setCenterY(135.0f);

      //Setting the radius of the circle
      circle.setRadius(25.0f);

      //Setting the color of the circle
      circle.setFill(Color.BROWN);

      //Setting the stroke width of the circle
      circle.setStrokeWidth(20);

      //Creating a Path
      Path path = new Path();

      //Moving to the starting point
      MoveTo moveTo = new MoveTo(108, 71);

      //Creating 1st line
      LineTo line1 = new LineTo(321, 161);

      //Creating 2nd line
      LineTo line2 = new LineTo(126,232);

      //Creating 3rd line
      LineTo line3 = new LineTo(232,52);

      //Creating 4th line
      LineTo line4 = new LineTo(269, 250);

      //Creating 5th line
      LineTo line5 = new LineTo(108, 71);

      //Adding all the elements to the path
      path.getElements().add(moveTo);
      path.getElements().addAll(line1, line2, line3, line4, line5);

      //Creating the path transition
      PathTransition pathTransition = new PathTransition();

      //Setting the duration of the transition
      pathTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      pathTransition.setNode(circle);

      //Setting the path for the transition
      pathTransition.setPath(path);

      //Setting the orientation of the path
      pathTransition.setOrientation(
         PathTransition.OrientationType.ORTHOGONAL_TO_TAN GENT);

      //Setting the cycle count for the transition
      pathTransition.setCycleCount(50);

      //Setting auto reverse value to true
      pathTransition.setAutoReverse(false);

      //Playing the animation
      pathTransition.play();

      //Creating a Group object
      Group root = new Group(circle);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting title to the Stage
      stage.setTitle("Path transition example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令從命令提示符編譯並執行儲存的 java 檔案。

javac --module-path %PATH_TO_FX% --add-modules javafx.controls PathTransitionExample2.java
java --module-path %PATH_TO_FX% --add-modules javafx.controls PathTransitionExample2

輸出

執行後，上述程式生成一個 JavaFX 視窗，如下所示。
