WPF - 資料網格

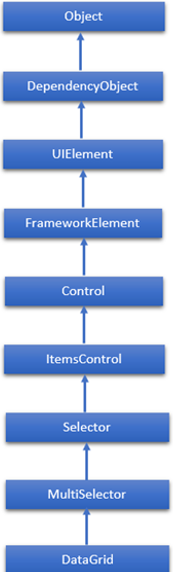

DataGrid 是一種以可自定義網格顯示資料的控制元件。它提供了一種靈活的方式，可以以行和列的形式顯示資料集合。DataGrid 類的層次繼承如下：

DataGrid 的常用屬性

DataGrid 的常用方法

DataGrid 的常用事件

示例

• 讓我們建立一個名為 WPFDataGridControl 的新 WPF 專案。

• 從工具箱中拖動資料網格。

• 以下示例演示如何在 DataGrid 中顯示資料。下面是建立了兩個資料網格以及一組屬性和事件的 XAML 程式碼。

<Window x:Class = "WPFDataGridControl.MainWindow"
   xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml"
   xmlns:core = "clr-namespace:System;assembly = mscorlib"
   xmlns:local = "clr-namespace:WPFDataGridControl"
   Title = "MainWindow" Height = "350" Width = "525">

   <Window.Resources>
      <ObjectDataProvider x:Key = "myEnum" MethodName = "GetValues"
         ObjectType = "{x:Type core:Enum}">

         <ObjectDataProvider.MethodParameters>
            <x:TypeExtension Type = "local:Party" />
         </ObjectDataProvider.MethodParameters>

      </ObjectDataProvider>
   </Window.Resources>

   <Grid>
      <DataGrid Name = "dataGrid" AlternatingRowBackground = "LightBlue"
         AlternationCount = "2" AutoGenerateColumns = "False">

         <DataGrid.Columns>
            <DataGridTextColumn Header = "Name" Binding = "{Binding Name}" />
            <DataGridTextColumn Header = "Title" Binding = "{Binding Title}" />
            <DataGridCheckBoxColumn Header = "ReElected?" Binding = "{Binding WasReElected}"/>
            <DataGridComboBoxColumn Header = "Party" SelectedItemBinding = "{Binding Affiliation}"
               ItemsSource = "{Binding Source = {StaticResource myEnum}}" />
         </DataGrid.Columns>

      </DataGrid>
   </Grid>

</Window>

以下是C# 實現，用於兩個不同的類。

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace WPFDataGridControl {
   /// <summary>
      /// Interaction logic for MainWindow.xaml
   /// </summary>

   public partial class MainWindow : Window {

      public MainWindow() {
         InitializeComponent();
         dataGrid.ItemsSource = Employee.GetEmployees();
      }
   }

   public enum Party {
      Indepentent,
      Federalist,
      DemocratRepublican,
   }

   public class Employee : INotifyPropertyChanged {
      private string name;

      public string Name {
         get { return name; }
         set {
            name = value;
            RaiseProperChanged();
         }
      }

      private string title;

      public string Title {
         get { return title; }
         set {
            title = value;
            RaiseProperChanged();
         }
      }

      private bool wasReElected;

      public bool WasReElected {
         get { return wasReElected; }
         set {
            wasReElected = value;
            RaiseProperChanged();
         }
      }

      private Party affiliation;

      public Party Affiliation {
         get { return affiliation; }
         set {
            affiliation = value;
            RaiseProperChanged();
         }
      }

      public static ObservableCollection<Employee> GetEmployees() {
         var employees = new ObservableCollection<Employee>();

         employees.Add(new Employee() { Name = "Ali", Title = "Minister", WasReElected = true,
            Affiliation = Party.Indepentent });

         employees.Add(new Employee() { Name = "Ahmed", Title = "CM", WasReElected = false,
            Affiliation = Party.Federalist });

         employees.Add(new Employee() { Name = "Amjad", Title = "PM", WasReElected = true,
            Affiliation = Party.DemocratRepublican });

         employees.Add(new Employee() { Name = "Waqas", Title = "Minister",
            WasReElected = false, Affiliation = Party.Indepentent });

         employees.Add(new Employee() { Name = "Bilal", Title = "Minister",
            WasReElected = true, Affiliation = Party.Federalist });

         employees.Add(new Employee() { Name = "Waqar", Title = "Minister",
            WasReElected = false, Affiliation = Party.DemocratRepublican });

         return employees;
      }

      public event PropertyChangedEventHandler PropertyChanged;

      private void RaiseProperChanged([CallerMemberName] string caller = "") {

         if (PropertyChanged != null) {
            PropertyChanged(this, new PropertyChangedEventArgs(caller));
         }
      }

   }

}

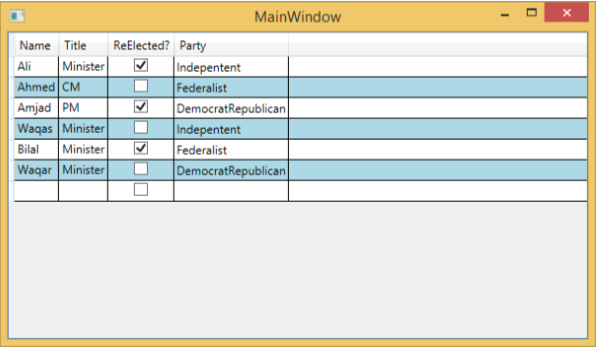

編譯並執行上述程式碼後，將生成以下視窗。

我們建議您執行上述示例程式碼，並嘗試 DataGrid 的其他一些屬性和事件。
