XAML - 開關按鈕

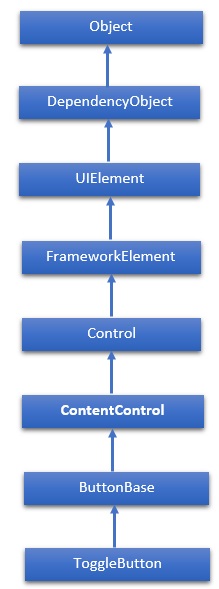

開關按鈕是一種可以切換狀態的控制元件，例如 CheckBox 和 RadioButton。ToggleButton 類的繼承層次如下 −

屬性

事件

示例

以下示例顯示了在 XAML 應用程式中使用 ToggleButton。以下是使用一些屬性建立和初始化 ToggleButton 的 XAML 程式碼。

<Page x:Class = "XAMLToggleButton.MainPage"
   xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml"
   xmlns:local = "using:XAMLToggleButton"
   xmlns:d = "http://schemas.microsoft.com/expression/blend/2008"
   xmlns:mc = "http://schemas.openxmlformats.org/markup-compatibility/2006"
   mc:Ignorable = "d">

   <Grid Background = "{ThemeResource ApplicationPageBackgroundThemeBrush}">
      <StackPanel Orientation = "Vertical">
         <ToggleButton x:Name = "cb2" Content = "Toggle"
            Checked = "HandleCheck" Unchecked = "HandleUnchecked"
            Margin = "100" Width = "100" HorizontalAlignment = "Center"/>

         <TextBlock x:Name = "text2" Margin = "10" Width = "300"
            HorizontalAlignment = "Center" Height = "50" FontSize = "24"/>
      </StackPanel>
   </Grid>

</Page>

以下是 Checked 和 Unchecked 事件的 C# 實現 −

using System;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;

// The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=234238

namespace XAMLToggleButton {
   /// <summary>
      /// An empty page that can be used on its own or navigated to within a Frame.
   /// </summary>

   public sealed partial class MainPage : Page {
      public MainPage() {
         this.InitializeComponent();
      }
      private void HandleCheck(object sender, RoutedEventArgs e) {
         text2.Text = "Button is Checked";
      }
      private void HandleUnchecked(object sender, RoutedEventArgs e) {
         text2.Text = "Button is unchecked.";
      }
   }
}

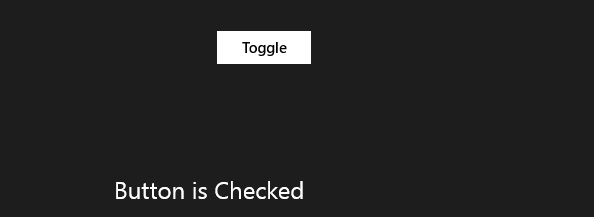

編譯並執行上述程式碼時，將生成以下輸出 −

我們建議你執行以上示例程式碼，並嘗試其他一些屬性和事件。
