XAML - RichEditBox

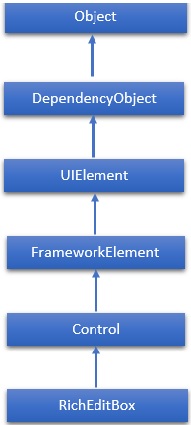

RichEditBox 是一種富文字編輯控制元件，支援格式化文字、超連結和其他富內容。WPF 專案不支援此控制元件。因此它將在 Windows 應用中實現。RichEditBox 類的層次繼承如下：

屬性

事件

方法

示例

以下示例演示如何在 RichEditBox 中開啟和儲存 RTF 檔案。以下是建立和初始化兩個按鈕和一個具有某些屬性和事件的 RichEditBox 的 XAML 程式碼。

<Page x:Class = "XAMLRichEditBox.MainPage"
   xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml"
   xmlns:local = "using:XAMLRichEditBox"
   xmlns:d = "http://schemas.microsoft.com/expression/blend/2008"
   xmlns:mc = "http://schemas.openxmlformats.org/markup-compatibility/2006"
   mc:Ignorable = "d">

   <Grid Background = "{ThemeResource ApplicationPageBackgroundThemeBrush}">
      <Grid Margin = "120">
         <Grid.RowDefinitions>
            <RowDefinition Height="50"/>
            <RowDefinition/>
         </Grid.RowDefinitions>

         <StackPanel Orientation = "Horizontal">
            <Button Content = "Open file" Click = "OpenButton_Click"/>
            <Button Content = "Save file" Click = "SaveButton_Click"/>
         </StackPanel>

         <RichEditBox x:Name = "editor" Grid.Row = "1"/>
      </Grid>
   </Grid>

</Page>

以下是針對不同事件和檔案處理的 C# 實現：

using System;
using System.Collections.Generic;
using System.IO; using System.Linq;
using System.Runtime.InteropServices.WindowsRuntime;

using Windows.Foundation;
using Windows.Foundation.Collections;

using Windows.Storage;
using Windows.Storage.Pickers;
using Windows.Storage.Provider;

using Windows.UI.ViewManagement;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;

// The Blank Page item template is documented at
http://go.microsoft.com/fwlink/?LinkId=234238

namespace XAMLRichEditBox {
   /// <summary>
      /// An empty page that can be used on its own or navigated to within a Frame.
   /// </summary>

   public sealed partial class MainPage : Page {
      public MainPage() {
         this.InitializeComponent();
      }
      private async void OpenButton_Click(object sender, RoutedEventArgs e) {
         // Open a text file.
         Windows.Storage.Pickers.FileOpenPicker open = new
            Windows.Storage.Pickers.FileOpenPicker();
         open.SuggestedStartLocation =
            Windows.Storage.Pickers.PickerLocationId.DocumentsLibrary;
         open.FileTypeFilter.Add(".rtf");
         Windows.Storage.StorageFile file = await open.PickSingleFileAsync();

         if (file != null) {
            Windows.Storage.Streams.IRandomAccessStream randAccStream = await
               file.OpenAsync(Windows.Storage.FileAccessMode.Read);

            // Load the file into the Document property of the RichEditBox.
            editor.Document.LoadFromStream(Windows.UI.Text.TextSetOptions.FormatRtf, randAccStream);
         }
      }
      private async void SaveButton_Click(object sender, RoutedEventArgs e) {
         if (((ApplicationView.Value != ApplicationViewState.Snapped) ||
            ApplicationView.TryUnsnap())) {

            FileSavePicker savePicker = new FileSavePicker();
            savePicker.SuggestedStartLocation = PickerLocationId.DocumentsLibrary;

            // Dropdown of file types the user can save the file as
            savePicker.FileTypeChoices.Add("Rich Text", new List <string>() { ".rtf" });

            // Default file name if the user does not type one in or select a file to replace
            savePicker.SuggestedFileName = "New Document";

            StorageFile file = await savePicker.PickSaveFileAsync();

            if (file != null) {
               // Prevent updates to the remote version of the file until we
               //finish making changes and call
               CompleteUpdatesAsync. CachedFileManager.DeferUpdates(file);

               // write to file
               Windows.Storage.Streams.IRandomAccessStream randAccStream = await
                  file.OpenAsync(Windows.Storage.FileAccessMode.ReadWrite);

               editor.Document.SaveToStream(Windows.UI.Text.TextGetOptions.FormatRtf, randAccStream);

               // Let Windows know that we're finished changing the file so the
               // other app can update the remote version of the file.

               FileUpdateStatus status = await CachedFileManager.CompleteUpdatesAsync(file);

               if (status != FileUpdateStatus.Complete) {
                  Windows.UI.Popups.MessageDialog
                     errorBox = new Windows.UI.Popups.MessageDialog(
                     "File " + file.Name + " couldn't be saved.");

                  await errorBox.ShowAsync();
               }
            }
         }
      }
   }
}

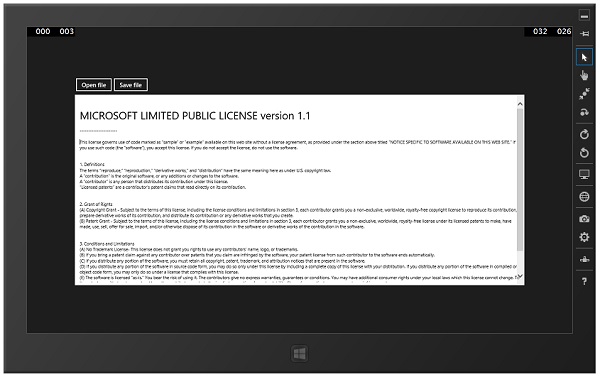

編譯並執行上述程式碼後，將產生以下輸出。您可以使用此應用程式開啟、編輯和儲存任何 RTF 檔案。

我們建議您執行上述示例程式碼並嘗試其他一些屬性和事件。
