XAML - 資料網格 (DataGrid)

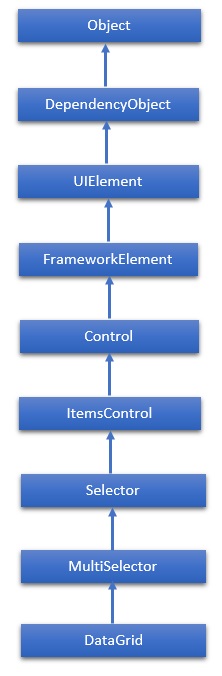

DataGrid 表示一個控制元件，用於以可自定義的網格顯示資料。它提供了一種靈活的方式來以行和列顯示資料集合。DataGrid 類的繼承層次結構如下：

屬性

方法

事件

示例

以下示例演示如何在 DataGrid 中顯示資料。以下是建立兩個具有某些屬性和事件的複選框的 XAML 程式碼。

<Window x:Class = "DataGrid.MainWindow"
   xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml"
   xmlns:core = "clr-namespace:System;assembly = mscorlib"
   xmlns:local = "clr-namespace:DataGrid"
   Title = "MainWindow" Height = "350" Width = "525">

   <Window.Resources>
      <ObjectDataProvider x:Key = "myEnum" MethodName = "GetValues"
         ObjectType = "{x:Type core:Enum}">

         <ObjectDataProvider.MethodParameters>
            <x:TypeExtension Type = "local:Party" />
         </ObjectDataProvider.MethodParameters>
		</ObjectDataProvider>
   </Window.Resources>

   <Grid>
      <DataGrid Name = "dataGrid" AlternatingRowBackground = "LightBlue"
         AlternationCount = "2" AutoGenerateColumns = "False">

         <DataGrid.Columns>
            <DataGridTextColumn Header = "Name" Binding = "{Binding Name}" />
            <DataGridTextColumn Header = "Title" Binding = "{Binding Title}" >
            <DataGridCheckBoxColumn Header = "ReElected?" Binding = "{Binding WasReElected}"/>

            <DataGridComboBoxColumn Header = "Party"
               SelectedItemBinding = "{Binding Affiliation}"
               ItemsSource = "{Binding Source = {StaticResource myEnum}}" />
         </DataGrid.Columns>
      </DataGrid>
   </Grid>

</Window>

以下是針對兩個不同類的 C# 實現。

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace DataGrid {
   /// <summary>
      /// Interaction logic for MainWindow.xaml
   /// </summary>

   public partial class MainWindow : Window {
      public MainWindow() {
         InitializeComponent(); dataGrid.ItemsSource = Employee.GetEmployees();
      }
   }
	public enum Party {
      Indepentent, Federalist, DemocratRepublican,
   }
}

以下是 C# 中另一個 Employee 類實現。

public class Employee : INotifyPropertyChanged {
   private string name; public string Name {
      get { return name; }
      set {
         name = value; RaiseProperChanged();
      }
   }
	private string title; public string Title {
      get { return title; }
		set {
         title = value;
         RaiseProperChanged();
      }
   }
	private bool wasReElected;
	public bool WasReElected {
      get { return wasReElected; }
      set {
         wasReElected = value; RaiseProperChanged();
      }
   }
	private Party affiliation; public Party Affiliation {
      get { return affiliation; }
		set {
         affiliation = value; RaiseProperChanged();
      }
   }
	public static ObservableCollection<Employee> GetEmployees() {
      var employees = new ObservableCollection<Employee>();
      employees.Add(new Employee() {
         Name = "Ali", Title = "Minister", WasReElected = true,
         Affiliation = Party.Indepentent });

      employees.Add(new Employee() {
         Name = "Ahmed", Title = "CM", WasReElected = false,
         Affiliation = Party.Federalist });

      employees.Add(new Employee() {
         Name = "Amjad", Title = "PM", WasReElected = true,
         Affiliation = Party.DemocratRepublican });

      employees.Add(new Employee() {
         Name = "Waqas", Title = "Minister", WasReElected = false,
         Affiliation = Party.Indepentent });

      employees.Add(new Employee() {
         Name = "Bilal", Title = "Minister", WasReElected = true,
         Affiliation = Party.Federalist });

      employees.Add(new Employee() {
         Name = "Waqar", Title = "Minister", WasReElected = false,
         Affiliation = Party.DemocratRepublican });

      return employees;
   }
   public event PropertyChangedEventHandler PropertyChanged;

   private void RaiseProperChanged( [CallerMemberName] string caller = "") {
      if (PropertyChanged != null) {
         PropertyChanged(this, new PropertyChangedEventArgs(caller));
      }
   }
}

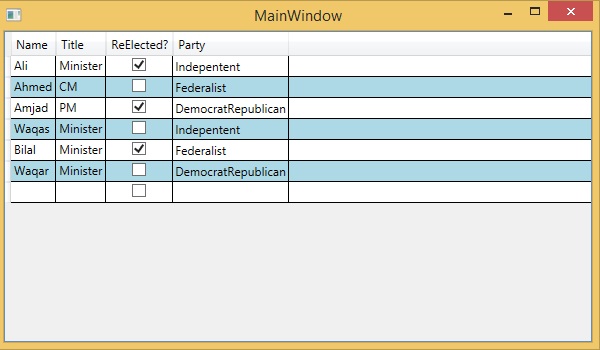

編譯並執行上述程式碼後，將產生以下輸出：

我們建議您執行上述示例程式碼並嘗試其他一些屬性和事件。
