Spring Boot - 使用 SpringDoc OpenAPI

上一頁
下一頁

springdoc-openapi 是一個開源專案，用於為基於 Spring Boot 的專案生成 API 文件。它在執行時檢查應用程式的 API 語義，這些語義基於 Spring 配置、類結構和註解。它支援以下 API。

  • OpenAPI 3

  • Spring Boot 3

  • JSR-303 規範，包括 @NotNull、@Min、@Max 和 @Size。

  • Swagger-ui

  • OAuth 2

  • GraalVM 原生映象

在這個示例中，我們正在啟用 Swagger UI。要在 Spring Boot 應用程式中啟用 Swagger，需要在構建配置檔案中新增以下依賴項。

<dependency>
   <groupId>org.springdoc</groupId>
   <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
   <version>2.6.0</version>
</dependency>

對於 Gradle 使用者，請在您的 build.gradle 檔案中新增以下依賴項。

compile group: 'org.springdoc', name: 'springdoc-openapi-starter-webmvc-ui', version: '2.6.0'

就是這樣。不需要其他配置。我們可以使用以下 URL 檢查 JSON 格式的 API 規範：

http://server:port/<context-path>/v3/api-docs

Swagger UI 可透過以下 URL 訪問：

http://server:port/<context-path>/swagger-ui/index.html

讓我們將 OpenAPI 文件支援新增到我們在Spring Boot - 使用 RESTful Web 服務章節中討論的 REST API 示例中。

完整的構建配置檔案如下所示：

Maven – pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
   <modelVersion>4.0.0</modelVersion>
   <parent>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-parent</artifactId>
      <version>3.3.3</version>
      <relativePath/> <!-- lookup parent from repository -->
   </parent>
   <groupId>com.tutorialspoint</groupId>
   <artifactId>demo</artifactId>
   <version>0.0.1-SNAPSHOT</version>
   <packaging>jar</packaging>
   <name>demo</name>
   <description>Demo project for Spring Boot</description>
   <url/>
   <licenses>
      <license/>
   </licenses>
   <developers>
      <developer/>
   </developers>
   <scm>
      <connection/>
      <developerConnection/>
      <tag/>
      <url/>
      </scm>
      <properties>
         <java.version>21</java.version>
      </properties>
      <dependencies>
         <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
         </dependency>
        <dependency>
           <groupId>org.springdoc</groupId>
           <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
           <version>2.6.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
         <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
         </dependency>
      </dependencies>
   <build>
      <plugins>
         <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
         </plugin>
      </plugins>
   </build>
</project>

Gradle – build.gradle

buildscript {
   ext {
      springBootVersion = '3.3.3'
   }
   repositories {
      mavenCentral()
   }
   dependencies {
      classpath("org.springframework.boot:spring-boot-gradle-plugin:${springBootVersion}")
   }
}
apply plugin: 'java'
apply plugin: 'eclipse'
apply plugin: 'org.springframework.boot'

group = 'com.tutorialspoint'
version = '0.0.1-SNAPSHOT'
sourceCompatibility = 1.8

repositories {
   mavenCentral()
} dependencies {
   compile('org.springframework.boot:spring-boot-starter-web')
   testCompile('org.springframework.boot:spring-boot-starter-test')
   compile group: 'org.springdoc', name: 'springdoc-openapi-starter-webmvc-ui', version: '2.6.0'
}

編譯和執行

您可以建立一個可執行的 JAR 檔案，並使用以下 Maven 或 Gradle 命令執行 Spring Boot 應用程式，如下所示：

對於 Maven，使用以下命令：

mvn clean install

“BUILD SUCCESS”之後，您可以在 target 目錄下找到 JAR 檔案。

對於 Gradle，使用以下命令：

gradle clean build

“BUILD SUCCESSFUL”之後，您可以在 build/libs 目錄下找到 JAR 檔案。

您可以使用以下命令執行 JAR 檔案：

java –jar <JARFILE>

這將在 Tomcat 埠 8080 上啟動應用程式，如下所示：

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/

[32m :: Spring Boot :: [39m              [2m (v3.3.3)[0;39m

[2024-09-17T17:37:50Z] [org.springframework.boot.StartupInfoLogger] [main] [50] [INFO ] Starting DemoApplication using Java 21.0.3 with PID 7760 (E:\Dev\demo\target\classes started by Tutorialspoint in E:\Dev\demo)
[2024-09-17T17:37:50Z] [org.springframework.boot.SpringApplication] [main] [654] [INFO ] No active profile set, falling back to 1 default profile: "default"
[2024-09-17T17:37:51Z] [org.springframework.boot.web.embedded.tomcat.TomcatWebServer] [main] [111] [INFO ] Tomcat initialized with port 8080 (http)
[2024-09-17T17:37:51Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Initializing ProtocolHandler ["http-nio-8080"]
[2024-09-17T17:37:51Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting service [Tomcat]
[2024-09-17T17:37:51Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting Servlet engine: [Apache Tomcat/10.1.28]
[2024-09-17T17:37:51Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Initializing Spring embedded WebApplicationContext
[2024-09-17T17:37:51Z] [org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext] [main] [296] [INFO ] Root WebApplicationContext: initialization completed in 1106 ms
[2024-09-17T17:37:51Z] [org.springframework.boot.autoconfigure.web.servlet.WelcomePageHandlerMapping] [main] [59] [INFO ] Adding welcome page template: index
[2024-09-17T17:37:52Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting ProtocolHandler ["http-nio-8080"]
[2024-09-17T17:37:52Z] [org.springframework.boot.web.embedded.tomcat.TomcatWebServer] [main] [243] [INFO ] Tomcat started on port 8080 (http) with context path '/'
[2024-09-17T17:37:52Z] [org.springframework.boot.web.embedded.tomcat.TomcatWebServer] [main] [111] [INFO ] Tomcat initialized with port 9000 (http)
[2024-09-17T17:37:52Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Initializing ProtocolHandler ["http-nio-9000"]
[2024-09-17T17:37:52Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting service [Tomcat]
[2024-09-17T17:37:52Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting Servlet engine: [Apache Tomcat/10.1.28]
[2024-09-17T17:37:52Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Initializing Spring embedded WebApplicationContext
[2024-09-17T17:37:52Z] [org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext] [main] [296] [INFO ] Root WebApplicationContext: initialization completed in 80 ms
[2024-09-17T17:37:52Z] [org.springframework.boot.actuate.endpoint.web.EndpointLinksResolver] [main] [60] [INFO ] Exposing 1 endpoint beneath base path '/actuator'
[2024-09-17T17:37:52Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting ProtocolHandler ["http-nio-9000"]
[2024-09-17T17:37:52Z] [org.springframework.boot.web.embedded.tomcat.TomcatWebServer] [main] [243] [INFO ] Tomcat started on port 9000 (http) with context path '/'
[2024-09-17T17:37:52Z] [org.springframework.boot.StartupInfoLogger] [main] [56] [INFO ] Started DemoApplication in 2.378 seconds (process running for 3.241)
[2024-09-17T17:37:53Z] [org.apache.juli.logging.DirectJDKLog] [RMI TCP Connection(4)-127.0.0.1] [173] [INFO ] Initializing Spring DispatcherServlet 'dispatcherServlet'
[2024-09-17T17:37:53Z] [org.springframework.web.servlet.FrameworkServlet] [RMI TCP Connection(4)-127.0.0.1] [532] [INFO ] Initializing Servlet 'dispatcherServlet'
[2024-09-17T17:37:53Z] [org.springframework.web.servlet.FrameworkServlet] [RMI TCP Connection(4)-127.0.0.1] [554] [INFO ] Completed initialization in 1 ms
Remote Host:0:0:0:0:0:0:0:1
Remote Address:0:0:0:0:0:0:0:1
Pre Handle method is Calling
[2024-09-17T17:38:43Z] [org.springdoc.api.AbstractOpenApiResource] [http-nio-8080-exec-1] [390] [INFO ] Init duration for springdoc-openapi is: 148 ms

輸出

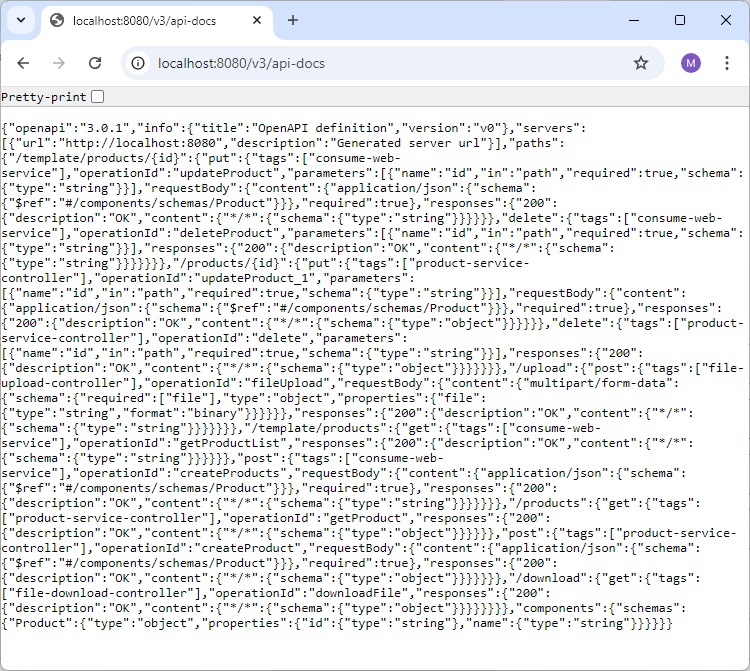

現在，在瀏覽器中點選以下 URL 檢視 JSON 格式的 API：

https://:8080/v3/api-docs

API Specifications

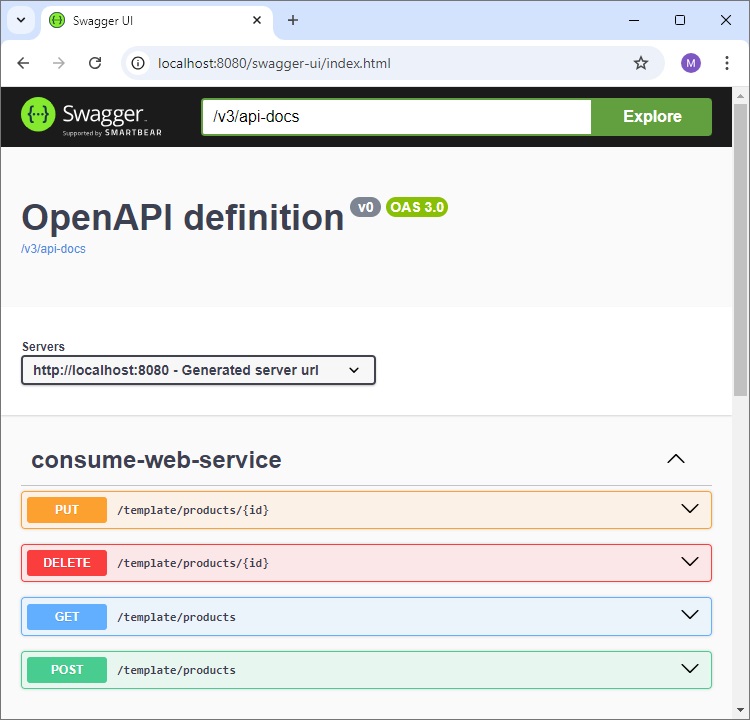

現在，在瀏覽器中點選以下 URL 檢視 Swagger UI 中的 API 文件：

https://:8080/swagger-ui/index.html

Swagger UI
