BabylonJS - 自發光

你可以透過此屬性應用顏色和紋理。透過自發光，它將輻射所使用的紋理或顏色。

語法

考慮與 Emissive 屬性相關的以下語法。

materialforbox.emissiveColor = new BABYLON.Color3(1, .2, .7);
materialforbox.emissiveTexture = new BABYLON.Texture("images/nature.jpg", scene);

演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs - Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>

   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);
         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3(0, 1, 0);

            var camera = new BABYLON.ArcRotateCamera("Camera", 1, 0.8, 10, new BABYLON.Vector3(0, 0, 0), scene);
            camera.attachControl(canvas, true);

            var light = new BABYLON.HemisphericLight("light1", new BABYLON.Vector3(0, 1, 0), scene);
            light.intensity = 0.7;

            var materialforbox = new BABYLON.StandardMaterial("texture1", scene);

            var box = BABYLON.Mesh.CreateBox("box", '3', scene);
            box.material  = materialforbox;

            materialforbox.emissiveColor = new BABYLON.Color3(0.5, .2, .2);

            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

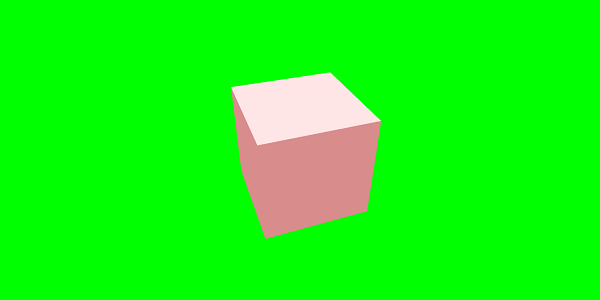

輸出

以上程式碼行生成以下輸出 −

帶有紋理的自發光

現在讓我們看看自發光如何和紋理一起使用。

演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs - Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>

   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);
         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3(0, 1, 0);

            var camera = new BABYLON.ArcRotateCamera("Camera", 1, 0.8, 10, new BABYLON.Vector3(0, 0, 0), scene);
            camera.attachControl(canvas, true);

            var light = new BABYLON.HemisphericLight("light1", new BABYLON.Vector3(0, 1, 0), scene);
            light.intensity = 0.7;

            var materialforbox = new BABYLON.StandardMaterial("texture1", scene);

            var box = BABYLON.Mesh.CreateBox("box", '3', scene);
            box.material  = materialforbox;
            materialforbox.emissiveTexture = new BABYLON.Texture("images/nature.jpg", scene);

            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

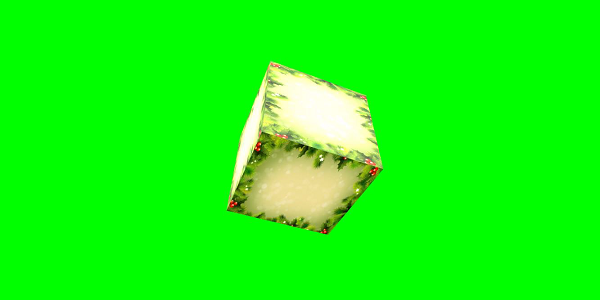

輸出

以上程式碼行生成以下輸出 −

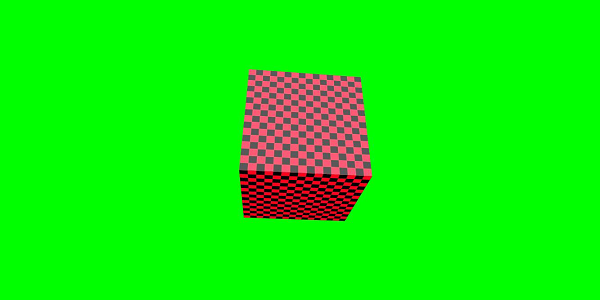

如果影像檔案不正確，它會使用預設紋理，如下所示 −

在此演示中，我們使用了一個名為 nature.jpg 的影像。影像儲存在本地 images/ 資料夾中。你可以在演示連結中下載你選擇的任何影像並使用。
