QTP - 自動化物件模型

QTP 本身可以使用 HP-QTP 提供的 COM 介面進行自動化。自動化物件模型是一組物件、方法和屬性，它幫助測試人員使用 QTP 介面控制配置設定和執行指令碼。可以控制的關鍵配置/操作（但不限於）列在下面：

• 載入測試所需的所有載入項
• 在執行期間使 QTP 可見
• 使用指定的路徑開啟測試
• 關聯函式庫
• 指定公共物件同步超時時間
• 啟動和結束迭代
• 啟用/停用智慧識別
• 錯誤設定
• 資料表路徑
• 恢復方案設定
• 日誌跟蹤設定

QTP 11.5x 提供了關於自動化物件模型的獨家文件，可以透過導航到“開始” >> “所有程式” >> “HP 軟體” >> “HP 統一功能測試” >> “文件” >> “統一功能測試自動化參考”來參考。

生成 AOM 指令碼

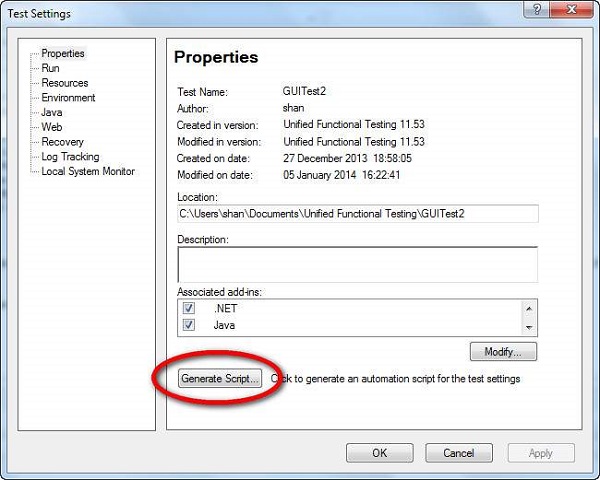

測試人員可以使用“生成指令碼”選項從 QTP 本身生成 AOM 指令碼。導航到“執行” >> “設定” >> “屬性”選項卡 >> “生成指令碼”，如下所示：

示例

' A Sample Script to Demostrate AOM
Dim App 'As Application
Set App = CreateObject("QuickTest.Application")
App.Launch
App.Visible = True

App.Test.Settings.Launchers("Web").Active = False
App.Test.Settings.Launchers("Web").Browser = "IE"
App.Test.Settings.Launchers("Web").Address = "http://easycalculation.com/"
App.Test.Settings.Launchers("Web").CloseOnExit = True

App.Test.Settings.Launchers("Windows Applications").Active = False
App.Test.Settings.Launchers("Windows Applications").Applications.RemoveAll
App.Test.Settings.Launchers("Windows Applications").RecordOnQTDescendants = True
App.Test.Settings.Launchers("Windows Applications").RecordOnExplorerDescendants = False
App.Test.Settings.Launchers("Windows Applications").RecordOnSpecifiedApplications = True

App.Test.Settings.Run.IterationMode = "rngAll"
App.Test.Settings.Run.StartIteration = 1
App.Test.Settings.Run.EndIteration = 1
App.Test.Settings.Run.ObjectSyncTimeOut = 20000
App.Test.Settings.Run.DisableSmartIdentification = False
App.Test.Settings.Run.OnError = "Dialog"

App.Test.Settings.Resources.DataTablePath = "<Default>"
App.Test.Settings.Resources.Libraries.RemoveAll

App.Test.Settings.Web.BrowserNavigationTimeout = 60000
App.Test.Settings.Web.ActiveScreenAccess.UserName = ""
App.Test.Settings.Web.ActiveScreenAccess.Password = ""

App.Test.Settings.Recovery.Enabled = True
App.Test.Settings.Recovery.SetActivationMode "OnError"
App.Test.Settings.Recovery.Add "D:\GUITest2\recover_app_crash.qrs",
   "Recover_Application_Crash", 1
App.Test.Settings.Recovery.Item(1).Enabled = True

''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''
' System Local Monitoring settings
''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''
App.Test.Settings.LocalSystemMonitor.Enable = false
''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''
' Log Tracking settings
''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''
With App.Test.Settings.LogTracking
   .IncludeInResults = False
   .Port = 18081
   .IP = "127.0.0.1"
   .MinTriggerLevel = "ERROR"
   .EnableAutoConfig = False
   .RecoverConfigAfterRun = False
   .ConfigFile = ""
   .MinConfigLevel = "WARN"
End With
