Spring MVC - 列表框示例

上一頁
下一頁

以下示例演示瞭如何使用 Spring Web MVC 框架在表單中使用列表框。首先，我們需要一個可用的 Eclipse IDE，然後按照以下步驟開發一個基於 Spring Web 框架的動態表單 Web 應用程式。

步驟 描述
1 建立一個名為 HelloWeb 的專案，包名為 com.tutorialspoint，如 Spring MVC - Hello World 章節中所述。
2 在 com.tutorialspoint 包下建立 Java 類 User 和 UserController。
3 在 jsp 子資料夾下建立檢視檔案 user.jsp 和 users.jsp。
4 最後一步是建立原始碼和配置檔案的內容，然後匯出應用程式，如下所述。

User.java

package com.tutorialspoint;

public class User {

   private String username;
   private String password;
   private String address;
   private boolean receivePaper;
   private String [] favoriteFrameworks;
   private String gender;
   private String favoriteNumber;
   private String country;
   private String [] skills;

   public String getUsername() {
      return username;
   }
   public void setUsername(String username) {
      this.username = username;
   }

   public String getPassword() {
      return password;
   }
   public void setPassword(String password) {
      this.password = password;
   }
   public String getAddress() {
      return address;
   }
   public void setAddress(String address) {
      this.address = address;
   }
   public boolean isReceivePaper() {
      return receivePaper;
   }
   public void setReceivePaper(boolean receivePaper) {
      this.receivePaper = receivePaper;
   }
   public String[] getFavoriteFrameworks() {
      return favoriteFrameworks;
   }
   public void setFavoriteFrameworks(String[] favoriteFrameworks) {
      this.favoriteFrameworks = favoriteFrameworks;
   }
   public String getGender() {
      return gender;
   }
   public void setGender(String gender) {
      this.gender = gender;
   }
   public String getFavoriteNumber() {
      return favoriteNumber;
   }
   public void setFavoriteNumber(String favoriteNumber) {
      this.favoriteNumber = favoriteNumber;
   }
   public String getCountry() {
      return country;
   }
   public void setCountry(String country) {
      this.country = country;
   }
   public String[] getSkills() {
      return skills;
   }
   public void setSkills(String[] skills) {
      this.skills = skills;
   }
}

UserController.java

package com.tutorialspoint;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class UserController {

   @RequestMapping(value = "/user", method = RequestMethod.GET)
   public ModelAndView user() {
      User user = new User();
	  user.setFavoriteFrameworks((new String []{"Spring MVC","Struts 2"}));
      user.setGender("M");
	  ModelAndView modelAndView = new ModelAndView("user", "command", user);
	  return modelAndView;
   }

   @RequestMapping(value = "/addUser", method = RequestMethod.POST)
   public String addUser(@ModelAttribute("SpringWeb")User user,
      ModelMap model) {
      model.addAttribute("username", user.getUsername());
      model.addAttribute("password", user.getPassword());
      model.addAttribute("address", user.getAddress());
      model.addAttribute("receivePaper", user.isReceivePaper());
	  model.addAttribute("favoriteFrameworks", user.getFavoriteFrameworks());
      model.addAttribute("gender", user.getGender());
      model.addAttribute("favoriteNumber", user.getFavoriteNumber());
      model.addAttribute("country", user.getCountry());
      model.addAttribute("skills", user.getSkills());
      return "users";
   }

   @ModelAttribute("webFrameworkList")
   public List<String> getWebFrameworkList() {
      List<String> webFrameworkList = new ArrayList<String>();
      webFrameworkList.add("Spring MVC");
      webFrameworkList.add("Struts 1");
      webFrameworkList.add("Struts 2");
      webFrameworkList.add("Apache Wicket");
      return webFrameworkList;
   }

   @ModelAttribute("numbersList")
   public List<String> getNumbersList() {
      List<String> numbersList = new ArrayList<String>();
      numbersList.add("1");
      numbersList.add("2");
      numbersList.add("3");
      numbersList.add("4");
      return numbersList;
   }

   @ModelAttribute("countryList")
   public Map<String, String> getCountryList() {
      Map<String, String> countryList = new HashMap<String, String>();
      countryList.put("US", "United States");
      countryList.put("CH", "China");
      countryList.put("SG", "Singapore");
      countryList.put("MY", "Malaysia");
      return countryList;
   }

   @ModelAttribute("skillsList")
   public Map<String, String> getSkillsList() {
      Map<String, String> skillList = new HashMap<String, String>();
      skillList.put("Hibernate", "Hibernate");
      skillList.put("Spring", "Spring");
      skillList.put("Apache Wicket", "Apache Wicket");
      skillList.put("Struts", "Struts");
      return skillList;
   }
}

這裡，對於第一個服務方法 **user()**，我們在 ModelAndView 物件中傳遞了一個空的 **User** 物件，名稱為 "command"，因為如果您在 JSP 檔案中使用 `` 標籤，Spring 框架會期望一個名為 "command" 的物件。因此，當呼叫 **user()** 方法時，它會返回 **user.jsp** 檢視。

第二個服務方法 **addUser()** 將針對 **HelloWeb/addUser** URL 上的 POST 方法呼叫。您將根據提交的資訊準備模型物件。最後，服務方法將返回 "users" 檢視，這將導致渲染 users.jsp。

user.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>User Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addUser">
         <table>
            <tr>
               <td><form:label path = "username">User Name</form:label></td>
               <td><form:input path = "username" /></td>
            </tr>
            <tr>
               <td><form:label path = "password">Age</form:label></td>
               <td><form:password path = "password" /></td>
            </tr>
            <tr>
               <td><form:label path = "address">Address</form:label></td>
               <td><form:textarea path = "address" rows = "5" cols = "30" /></td>
            </tr>
            <tr>
               <td><form:label path = "receivePaper">Subscribe Newsletter</form:label></td>
               <td><form:checkbox path = "receivePaper" /></td>
            </tr>
            <tr>
               <td><form:label path = "favoriteFrameworks">Favorite Web Frameworks</form:label></td>
               <td><form:checkboxes items = "${webFrameworkList}" path = "favoriteFrameworks" /></td>
            </tr>
            <tr>
               <td><form:label path = "gender">Gender</form:label></td>
               <td>
                  <form:radiobutton path = "gender" value = "M" label = "Male" />
                  <form:radiobutton path = "gender" value = "F" label = "Female" />
               </td>
            </tr>
            <tr>
               <td><form:label path = "favoriteNumber">Favorite Number</form:label></td>
               <td>
                  <form:radiobuttons path = "favoriteNumber" items = "${numbersList}" />
               </td>
            </tr>
            <tr>
               <td><form:label path = "country">Country</form:label></td>
               <td>
                  <form:select path = "country">
                     <form:option value = "NONE" label = "Select"/>
                     <form:options items = "${countryList}" />
                  </form:select>
               </td>
            </tr>
            <tr>
               <td><form:label path = "skills">Skills</form:label></td>
               <td>
                  <form:select path = "skills" items = "${skillsList}"
                     multiple = "true" />
               </td>
            </tr>
            <tr>
               <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

在這裡，我們使用 **``** 標籤，並使用屬性 **multiple=true** 來渲染 HTML 列表框。例如：

<form:select path = "skills" items = "${skillsList}" multiple = "true" />

它將呈現以下 HTML 內容。

<select id = "skills" name = "skills" multiple = "multiple">
   <option value = "Struts">Struts</option>
   <option value = "Hibernate">Hibernate</option>
   <option value = "Apache Wicket">Apache Wicket</option>
   <option value = "Spring">Spring</option>
</select>
<input type = "hidden" name = "_skills" value = "1"/>

users.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Submitted User Information</h2>
      <table>
         <tr>
            <td>Username</td>
            <td>${username}</td>
         </tr>
         <tr>
            <td>Password</td>
            <td>${password}</td>
         </tr>
         <tr>
            <td>Address</td>
            <td>${address}</td>
         </tr>
         <tr>
            <td>Subscribed to Newsletter</td>
            <td>${receivePaper}</td>
         </tr>
         <tr>
            <td>Favorite Web Frameworks</td>
            <td> <% String[] favoriteFrameworks = (String[])request.getAttribute("favoriteFrameworks");
               for(String framework: favoriteFrameworks) {
                  out.println(framework);
               }
            %></td>
         </tr>
         <tr>
            <td>Gender</td>
            <td>${(gender=="M"? "Male" : "Female")}</td>
         </tr>
         <tr>
            <td>Favourite Number</td>
            <td>${favoriteNumber}</td>
         </tr>
         <tr>
            <td>Country</td>
            <td>${country}</td>
         </tr>
         <tr>
            <td>Skills</td>
            <td> <% String[] skills = (String[])request.getAttribute("skills");
            for(String skill: skills) {
               out.println(skill);
            }
            %></td>
         </tr>
      </table>
   </body>
</html>

建立完原始碼和配置檔案後，匯出您的應用程式。右鍵單擊您的應用程式，使用 **匯出 → WAR 檔案** 選項並將 HelloWeb.war 檔案儲存到 Tomcat 的 webapps 資料夾中。

現在，啟動 Tomcat 伺服器，並確保您可以使用標準瀏覽器訪問 webapps 資料夾中的其他網頁。嘗試訪問 URL：**https://:8080/HelloWeb/user**，如果 Spring Web 應用程式一切正常，您將看到以下螢幕。

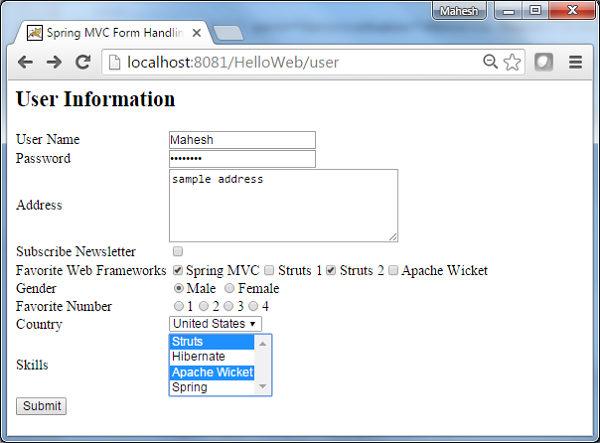

Spring listbox Form

提交所需資訊後，單擊提交按鈕提交表單。如果 Spring Web 應用程式一切正常，您將看到以下螢幕。

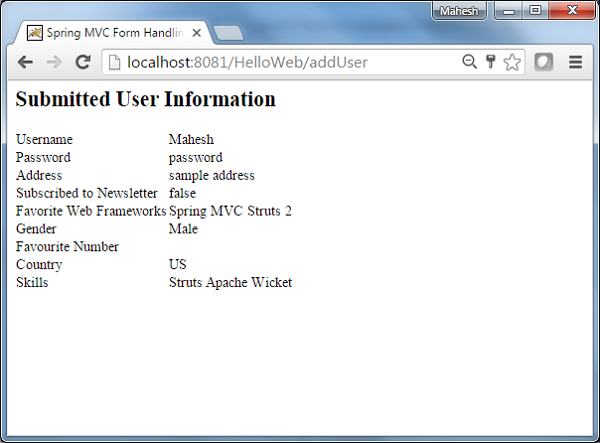

Spring listbox Form Result
