Silverlight - 單選按鈕

RadioButton（單選按鈕）是一種按鈕，允許使用者從一組選項中選擇一個選項。使用者只能從相關的選項列表中選擇一個選項，這些選項是互斥的。它只有兩個選項：

• 選中
• 清除

RadioButton 也派生自 ToggleButton，並使用相同的 IsChecked 屬性以及相同的 Checked、Unchecked 和 Indeterminate 事件。除此之外，RadioButton 還添加了一個名為 GroupName 的屬性，允許您控制單選按鈕如何分組。

• 通常，單選按鈕由其容器分組。這意味著，如果您將三個 RadioButton 控制元件放置在一個 StackPanel 中，它們將形成一個組，從中您只能選擇三個中的一個。

• 另一方面，如果您將單選按鈕的組合放置在兩個單獨的 StackPanel 控制元件中，則您將有兩個獨立的組。

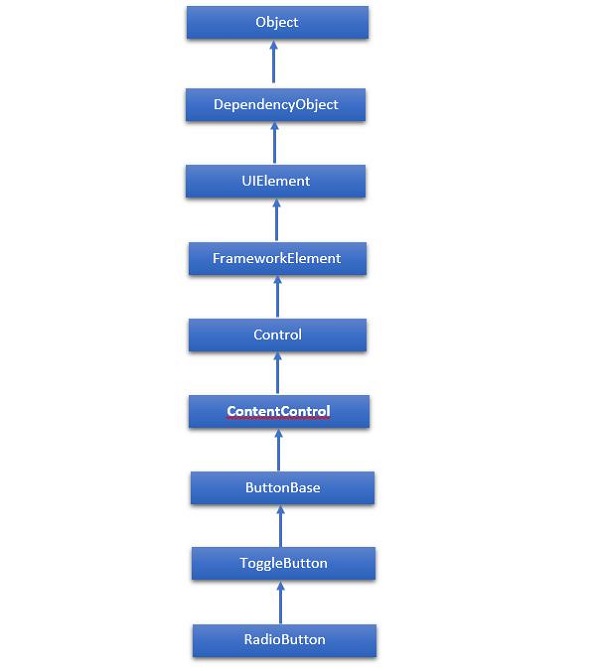

RadioButton 類的層次繼承如下：

以下是 RadioButton 最常用的屬性。

以下是 RadioButton 最常用的方法。

以下是 RadioButton 最常用的事件。

示例

讓我們來看一個簡單的示例，其中包含不同的按鈕。

<UserControl x:Class = "Buttons.MainPage"
   xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml"
   xmlns:d = "http://schemas.microsoft.com/expression/blend/2008"
   xmlns:mc = "http://schemas.openxmlformats.org/markup-compatibility/2006"
   mc:Ignorable = "d"
   d:DesignHeight = "300" d:DesignWidth = "400">

   <StackPanel x:Name = "LayoutRoot" Background = "White">
      <Button x:Name = "button" Content = "Click Me" HorizontalAlignment = "Left"
         Margin = "10" VerticalAlignment = "Top" Width = "75"/>

      <StackPanel>

         <Border Margin = "5" Padding = "5" BorderBrush = "Yellow" BorderThickness = "1"
            CornerRadius = "5">

            <StackPanel>
               <RadioButton Content = "Group 1"/>
               <RadioButton Content = "Group 1"/>
               <RadioButton Content = "Group 1"/>
               <RadioButton GroupName = "Group3" Content = "Group 3"/>
            </StackPanel>

         </Border>

         <Border Margin = "5" Padding = "5" BorderBrush = "Yellow" BorderThickness = "1"
            CornerRadius = "5">

            <StackPanel>
               <RadioButton Content = "Group 2"/>
               <RadioButton Content = "Group 2"/>
               <RadioButton Content = "Group 2"/>
               <RadioButton GroupName = "Group3" Content = "Group 3"/>
            </StackPanel>
         </Border>

      </StackPanel>

      <CheckBox x:Name = "checkBox1" Content = "Two States" HorizontalAlignment = "Left"
         VerticalAlignment = "Top" Checked = "HandleCheck" Margin = "10,0,0,0"
         Unchecked = "HandleUnchecked" Width = "90"/>

      <CheckBox x:Name = "checkBox2" Content = "Three States" HorizontalAlignment = "Left"
         VerticalAlignment = "Top" Width = "90" IsThreeState = "True" Margin = "10,0,0,0"
         Indeterminate = "HandleThirdState" Checked = "HandleCheck"
         Unchecked = "HandleUnchecked"/>

      <TextBox x:Name = "textBox1" HorizontalAlignment = "Left" Margin = "10,0,0,0"
         TextWrapping = "Wrap" VerticalAlignment = "Top" Width = "300"/>

      <TextBox x:Name = "textBox2" HorizontalAlignment = "Left"
         Margin = "10,0,0,0" Height = "23" TextWrapping = "Wrap"
         VerticalAlignment = "Top" Width = "300"/>

   </StackPanel>

</UserControl>

這裡有兩個容器包含單選按鈕，但有三個組。每個組框底部的最後一個單選按鈕是第三個組的一部分。還有兩個狀態和三個狀態的複選框。

以下是 事件實現 的 C# 程式碼。

using System.Windows;
using System.Windows.Controls;

namespace Buttons {

   public partial class MainPage : UserControl {

      public MainPage() {
         InitializeComponent();
      }

      private void HandleCheck(object sender, RoutedEventArgs e) {
         CheckBox cb = sender as CheckBox;

         if (cb.Name == "checkBox1") textBox1.Text = "2 state CheckBox is checked.";
         else textBox2.Text = "3 state CheckBox is checked.";
      }

      private void HandleUnchecked(object sender, RoutedEventArgs e) {
         CheckBox cb = sender as CheckBox;

         if (cb.Name == "checkBox1") textBox1.Text = "2 state CheckBox is unchecked.";
         else textBox2.Text = "3 state CheckBox is unchecked.";
      }

      private void HandleThirdState(object sender, RoutedEventArgs e) {
         CheckBox cb = sender as CheckBox;
         textBox2.Text = "3 state CheckBox is in indeterminate state.";
      }

   }
}

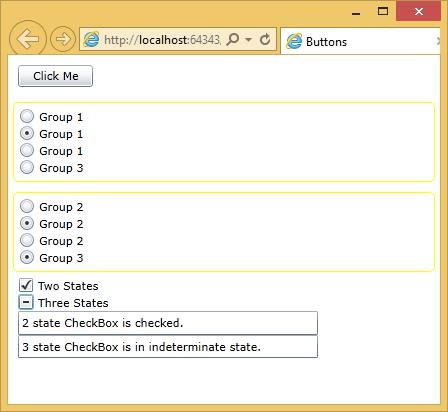

當編譯並執行上述程式碼時，將顯示以下網頁。
