NHibernate - 關係

---

---

在本章中，我們將瞭解 NHibernate 中的關係。讓我們將注意力轉向如何理解 NHibernate 中的關係。最簡單的方法是從資料庫的角度來思考這些關係。

• 我們首先建立一個新的應用程式，在其中我們將建立客戶和訂單實體之間的一些關係。

• 我們將要研究的第一個關係是經典的集合關係。

• 我們有一個客戶，以及一個訂單集合。

• 這是一個一對多關係，它在資料庫中由 2 個表表示，訂單表上有一個客戶 ID，並且我們有一個指向客戶的反向外部索引鍵關係。

首先，我們需要建立一個數據庫和兩個表 Customer 和 Order。您可以在 SQL Server 資源管理器中指定以下查詢來建立它們。

USE [master]
GO
CREATE DATABASE [NHibernateDemo]
GO
USE [NHibernateDemo]
GO

CREATE TABLE [dbo].[Customer](
   [Id] [uniqueidentifier] NOT NULL,
   [FirstName] [nvarchar](100) NOT NULL,
   [LastName] [nvarchar](100) NOT NULL,
   [Points] [int] NULL, [HasGoldStatus] [bit] NULL,
   [MemberSince] [date] NULL,
   [CreditRating] [nchar](20) NULL,
   [AverageRating] [decimal](18, 4) NULL,
   [Street] [nvarchar](100) NULL,
   [City] [nvarchar](100) NULL,
   [Province] [nvarchar](100) NULL,
   [Country] [nvarchar](100) NULL,
   PRIMARY KEY CLUSTERED ([Id] ASC)
)

GO
CREATE TABLE [dbo].[Order](
   [Id] [uniqueidentifier] NOT NULL,
   [CustomerId] [uniqueidentifier] NULL,
   [Ordered] [datetime] NULL,
   [Shipped] [datetime] NULL,
   [Street] [nvarchar](100) NULL,
   [City] [nvarchar](100) NULL,
   [Province] [nvarchar](100) NULL,
   [Country] [nvarchar](100) NULL,
   PRIMARY KEY CLUSTERED ([Id] ASC)
)
GO

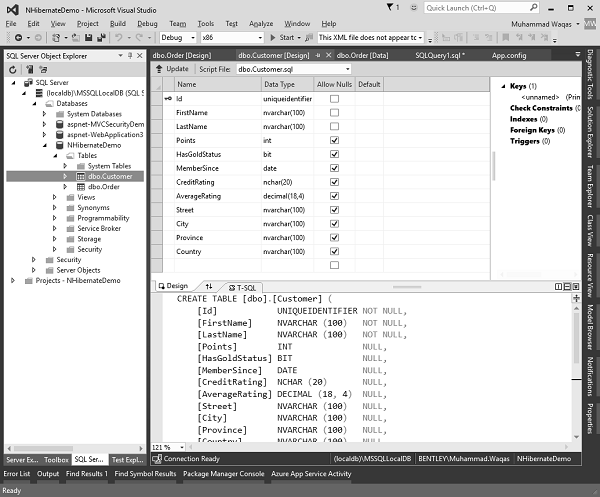

它將在資料庫中建立兩個表。下圖顯示了 Customer 表。

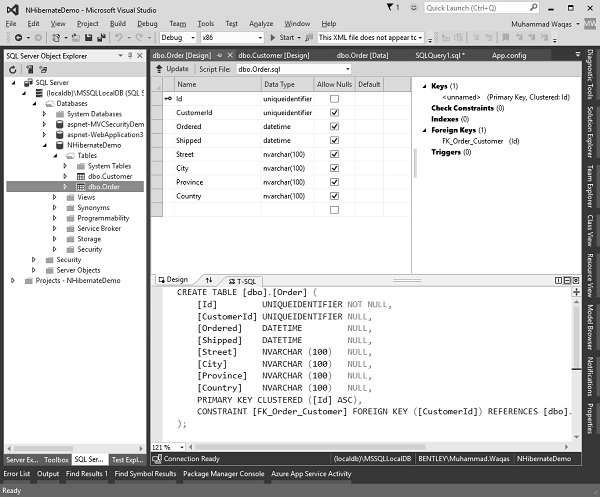

下圖顯示了 Order 表，您可以在其中看到指向客戶的反向外部索引鍵關係。

我們需要在app.config 檔案中定義連線字串，以下是 app.config 檔案的實現。

<?xml version = "1.0" encoding = "utf-8" ?>
<configuration>

   <connectionStrings>
      <add name = "default" connectionString = "Data Source =
         (localdb)\MSSQLLocalDB;Initial Catalog = NHibernateDemo;Integrated Security =
         True;Connect Timeout = 30;Encrypt = False;TrustServerCertificate = False;
         ApplicationIntent = ReadWrite;MultiSubnetFailover = False"/>
   </connectionStrings>

</configuration>

要在您的應用程式中安裝 NHibernate，請在 NuGet Manager 控制檯視窗中執行以下命令。

install-package NHibernate

要配置 NHibernate 配置，我們需要在hibernate.cfg.xml 檔案中定義配置，如下面的程式碼所示。

<xml version = "1.0" encoding = "utf-8" ?>
<hibernate-configuration xmlns = "urn:nhibernate-configuration-2.2">

   <session-factory>
      <property name = "connection.connection_string_name">default</property>

      <property name = "connection.driver_class">
         NHibernate.Driver.SqlClientDriver
      </property>

      <property name = "dialect">
         NHibernate.Dialect.MsSql2008Dialect
      </property>

      <property name = "show_sql">true</property>
   </session-factory>

</hibernate-configuration>

在這個例子中，我們將使用兩個領域類，Customer 和 Order。

以下是 Customer.cs 檔案的實現，其中我們有兩個類，一個是 Customer 類，另一個是 Location 類，其中物件用作 Customer 類中的地址。

using System;
using System.Text;
using Iesi.Collections.Generic;

namespace NHibernateDemo {

   public class Customer {

      public Customer() {
         MemberSince = DateTime.UtcNow;
         Orders = new HashedSet<Order>();
      }

      public virtual Guid Id { get; set; }
      public virtual string FirstName { get; set; }
      public virtual string LastName { get; set; }
      public virtual double AverageRating { get; set; }
      public virtual int Points { get; set; }

      public virtual bool HasGoldStatus { get; set; }
      public virtual DateTime MemberSince { get; set; }
      public virtual CustomerCreditRating CreditRating { get; set; }
      public virtual Location Address { get; set; }

      public virtual ISet<Order> Orders { get; set; }
      public virtual void AddOrder(Order order) { Orders.Add(order); order.Customer = this; }

      public override string ToString() {
         var result = new StringBuilder();

         result.AppendFormat("{1} {2} ({0})\r\n\tPoints: {3}\r\n\tHasGoldStatus:
            {4}\r\n\tMemberSince: {5} ({7})\r\n\tCreditRating: {6}\r\n\tAverageRating:
            {8}\r\n", Id, FirstName, LastName, Points, HasGoldStatus, MemberSince,
            CreditRating, MemberSince.Kind, AverageRating);
            result.AppendLine("\tOrders:");

         foreach(var order in Orders) {
            result.AppendLine("\t\t" + order);
         }

         return result.ToString();
      }
   }

   public class Location {
      public virtual string Street { get; set; }
      public virtual string City { get; set; }
      public virtual string Province { get; set; }
      public virtual string Country { get; set; }
   }

   public enum CustomerCreditRating {
      Excellent,
      VeryVeryGood,
      VeryGood,
      Good,
      Neutral,
      Poor,
      Terrible
   }
}

以下是對映檔案Customer.hbm.xml，其中 Customer 類對映到 Customer 表。

<?xml version = "1.0" encoding = "utf-8" ?>
<hibernate-mapping xmlns = "urn:nhibernate-mapping-2.2" assembly = "NHibernateDemo"
   namespace = "NHibernateDemo">

   <class name = "Customer">

      <id name = "Id">
         <generator class = "guid.comb"/>
      </id>

      <property name = "FirstName"/>
      <property name = "LastName"/>
      <property name = "AverageRating"/>
      <property name = "Points"/>
      <property name = "HasGoldStatus"/>
      <property name = "MemberSince" type = "UtcDateTime"/>
      <property name = "CreditRating" type = "CustomerCreditRatingType"/>

      <component name = "Address">
         <property name = "Street"/>
         <property name = "City"/>
         <property name = "Province"/>
         <property name = "Country"/>
      </component>

   </class>
</hibernate-mapping>

我們還有一個 Order 類，以下是Order.cs 檔案的實現。

using System; using Iesi.Collections.Generic;

namespace NHibernateDemo {

   public class Order {

      public virtual Guid Id { get; set; }
      public virtual DateTime Ordered { get; set; }
      public virtual DateTime? Shipped { get; set; }
      public virtual Location ShipTo { get; set; }
      public virtual Customer Customer { get; set; }

      public override string ToString() {
         return string.Format("Order Id: {0}", Id);
      }
   }
}

多對一關係

我們還需要將 Order 類對映到資料庫中的 Order 表，所以以下是Order.hbm.xml 檔案的實現。

<?xml version = "1.0" encoding = "utf-8" ?>
<hibernate-mapping xmlns = "urn:nhibernate-mapping-2.2" assembly = "NHibernateDemo"
   namespace = "NHibernateDemo">

   <class name = "Order" table = "`Order`">

      <id name = "Id">
         <generator class = "guid.comb"/>
      </id>

      <property name = "Ordered"/>
      <property name = "Shipped"/>

      <component name = "ShipTo">
         <property name = "Street"/>
         <property name = "City"/>
         <property name = "Province"/>
         <property name = "Country"/>
      </component>

      <!--<many-to-one name = "Customer" column = "CustomerId" cascade =
         "save-update"/>-->

   </class>
</hibernate-mapping>

一對多關係

在這裡，我們將看一下一對多關係，在本例中，客戶和訂單之間。我們在這裡有我們的客戶，我們正在建立一個新的客戶，您可以看到該集合已初始化為以下訂單對。

private static Customer CreateCustomer() {

   var customer = new Customer {
      FirstName = "John",
      LastName = "Doe",
      Points = 100,
      HasGoldStatus = true,
      MemberSince = new DateTime(2012, 1, 1),
      CreditRating = CustomerCreditRating.Good,
      AverageRating = 42.42424242,
      Address = CreateLocation()
   };

   var order1 = new Order {
      Ordered = DateTime.Now
   };

   customer.AddOrder(order1);
   var order2 = new Order {
      Ordered = DateTime.Now.AddDays(-1),
      Shipped = DateTime.Now,
      ShipTo = CreateLocation()
   };

   customer.AddOrder(order2);
   return customer;
}

因此，我們將建立一個新的客戶並儲存它，儲存後，我們將找到 ID 並在 Main 方法中的另一個會話中重新載入它，如下面的程式所示。

private static void Main() {

   var cfg = ConfigureNHibernate();
   var sessionFactory = cfg.BuildSessionFactory();

   Guid id;
   using(var session = sessionFactory.OpenSession())

   using(var tx = session.BeginTransaction()) {
      var newCustomer = CreateCustomer();
      Console.WriteLine("New Customer:");
      Console.WriteLine(newCustomer);
      session.Save(newCustomer);
      id = newCustomer.Id;
      tx.Commit();
   }

   using(var session = sessionFactory.OpenSession())

   using(var tx = session.BeginTransaction()) {
      var reloaded = session.Load<Customer>(id);
      Console.WriteLine("Reloaded:");
      Console.WriteLine(reloaded);
      tx.Commit();
   }

   Console.WriteLine("Press <ENTER> to exit...");
   Console.ReadLine();
}

以下是完整的Program.cs 檔案實現。

using System;
using System.Data;
using System.Linq;
using System.Reflection;

using HibernatingRhinos.Profiler.Appender.NHibernate;
using NHibernate.Cfg;
using NHibernate.Dialect;
using NHibernate.Driver;
using NHibernate.Linq;

namespace NHibernateDemo {

   internal class Program {

      private static void Main() {

         var cfg = ConfigureNHibernate();
         var sessionFactory = cfg.BuildSessionFactory();

         Guid id;
         using(var session = sessionFactory.OpenSession())

         using(var tx = session.BeginTransaction()) {
            var newCustomer = CreateCustomer();
            Console.WriteLine("New Customer:");
            Console.WriteLine(newCustomer);
            session.Save(newCustomer);
            id = newCustomer.Id;
            tx.Commit();
         }

         using(var session = sessionFactory.OpenSession())

         using(var tx = session.BeginTransaction()) {
            var reloaded = session.Load<Customer>(id);
            Console.WriteLine("Reloaded:");
            Console.WriteLine(reloaded);
            tx.Commit();
         }

         Console.WriteLine("Press <ENTER> to exit...");
         Console.ReadLine();
      }

      private static Customer CreateCustomer() {

         var customer = new Customer {
            FirstName = "John",
            LastName = "Doe",
            Points = 100,
            HasGoldStatus = true,
            MemberSince = new DateTime(2012, 1, 1),
            CreditRating = CustomerCreditRating.Good,
            AverageRating = 42.42424242,
            Address = CreateLocation()
         };

         var order1 = new Order {
            Ordered = DateTime.Now
         };

         customer.AddOrder(order1);

         var order2 = new Order {
            Ordered = DateTime.Now.AddDays(-1),
            Shipped = DateTime.Now,
            ShipTo = CreateLocation()
         };

         customer.AddOrder(order2);
         return customer;
      }

      private static Location CreateLocation() {

         return new Location {
            Street = "123 Somewhere Avenue",
            City = "Nowhere",
            Province = "Alberta",
            Country = "Canada"
         };
      }

      private static Configuration ConfigureNHibernate() {
         NHibernateProfiler.Initialize();
         var cfg = new Configuration();

         cfg.DataBaseIntegration(x =&ht; {
            x.ConnectionStringName = "default";
            x.Driver<SqlClientDriver>();
            x.Dialect<MsSql2008Dialect>();
            x.IsolationLevel = IsolationLevel.RepeatableRead;
            x.Timeout = 10; x.BatchSize = 10;
         });

         cfg.SessionFactory().GenerateStatistics();
         cfg.AddAssembly(Assembly.GetExecutingAssembly());
         return cfg;
      }
   }
}

當您執行此應用程式時，您將看到以下輸出。

New Customer:

John Doe (00000000-0000-0000-0000-000000000000)
   Points: 100
   HasGoldStatus: True
   MemberSince: 1/1/2012 12:00:00 AM (Unspecified)
   CreditRating: Good
   AverageRating: 42.42424242

   Orders:
      Order Id: 00000000-0000-0000-0000-000000000000
      Order Id: 00000000-0000-0000-0000-000000000000

Reloaded:
John Doe (9b0fcf10-83f6-4f39-bda5-a5b800ede2ba)
   Points: 100
   HasGoldStatus: True
   MemberSince: 1/1/2012 12:00:00 AM (Utc)
   CreditRating: Good
   AverageRating: 42.4242

   Orders:
Press <ENTER> to exit...

正如您所看到的，最初客戶有 2 個訂單，但是當我們重新載入它時，沒有看到任何訂單。如果您檢視customer.hbm.xml 檔案，您可以在此處看到我們沒有對映實際的 orders 集合。因此，NHibernate 對此一無所知。讓我們繼續新增它。

<?xml version = "1.0" encoding = "utf-8" ?>
<hibernate-mapping xmlns = "urn:nhibernate-mapping-2.2"
   assembly = "NHibernateDemo" namespace = "NHibernateDemo">

   <class name = "Customer">

      <id name = "Id">
         <generator class = "guid.comb"/>
      </id>

      <property name = "FirstName"/>
      <property name = "LastName"/>
      <property name = "AverageRating"/>
      <property name = "Points"/>
      <property name = "HasGoldStatus"/>
      <property name = "MemberSince" type = "UtcDateTime"/>
      <property name = "CreditRating" type = "CustomerCreditRatingType"/>

      <component name = "Address">
         <property name = "Street"/>
         <property name = "City"/>
         <property name = "Province"/>
         <property name = "Country"/>
      </component>

      <set name = "Orders" table = "`Order`">
         <key column = "CustomerId"/>
         <one-to-many class = "Order"/>
      </set>

   </class>
</hibernate-mapping>

這是一個集合，這個集合的名稱是“Orders”，它儲存在一個名為 order 的表中。我們需要指定一個鍵，即外部索引鍵的名稱或查詢訂單。這些訂單透過客戶 ID 被識別或屬於某個客戶。然後我必須注意這是一個一對多關係，它與 Order 類有關。

我們還需要稍微更改 Main 方法，以便將新的客戶訂單也儲存到資料庫中，如下面的程式所示。

private static void Main() {

   var cfg = ConfigureNHibernate();
   var sessionFactory = cfg.BuildSessionFactory();

   Guid id;
   using(var session = sessionFactory.OpenSession())

   using(var tx = session.BeginTransaction()) {
      var newCustomer = CreateCustomer();
      Console.WriteLine("New Customer:");
      Console.WriteLine(newCustomer);
      session.Save(newCustomer);

      foreach (var order in newCustomer.Orders) {
         session.Save(order);
      }

      id = newCustomer.Id;
      tx.Commit();
   }

   using(var session = sessionFactory.OpenSession())

   using(var tx = session.BeginTransaction()) {
      var reloaded = session.Load<Customer>(id);
      Console.WriteLine("The orders were ordered by: ");

      foreach (var order in reloaded.Orders) {
         Console.WriteLine(order.Customer);
      }

      tx.Commit();
   }
   Console.WriteLine("Press <ENTER> to exit..."); Console.ReadLine();
}

我們還指定了哪個客戶訂購了該特定產品。因此，我們需要建立一個多對一關係，以將該訂單關聯回該客戶。

所以讓我們進入Order.hbm.xml 檔案並新增一個多對一，然後命名客戶欄位和帶有客戶 ID 的列。

<?xml version = "1.0" encoding = "utf-8" ?>
<hibernate-mapping xmlns = "urn:nhibernate-mapping-2.2" assembly = "NHibernateDemo"
   namespace = "NHibernateDemo">

   <class name = "Order" table = "`Order`">

      <id name = "Id">
         <generator class = "guid.comb"/>
      </id>

      <property name = "Ordered"/>
      <property name = "Shipped"/>

      <component name = "ShipTo">
         <property name = "Street"/>
         <property name = "City"/>
         <property name = "Province"/>
         <property name = "Country"/>
      </component>

      <many-to-one name = "Customer" column = "CustomerId"/>

   </class>
</hibernate-mapping>

讓我們再次執行此應用程式，現在您將看到以下輸出。

New Customer:
John Doe (00000000-0000-0000-0000-000000000000)
   Points: 100
   HasGoldStatus: True
   MemberSince: 1/1/2012 12:00:00 AM (Unspecified)
   CreditRating: Good
   AverageRating: 42.42424242

   Orders:
      Order Id: 00000000-0000-0000-0000-000000000000
      Order Id: 00000000-0000-0000-0000-000000000000

Reloaded:
John Doe (660a6f29-650e-4380-99e0-a5b800febbde)
   Points: 100
   HasGoldStatus: True
   MemberSince: 1/1/2012 12:00:00 AM (Utc)
   CreditRating: Good
   AverageRating: 42.4242

   Orders:
      Order Id: 57314deb-e023-4e55-ac1e-a5b800febbe3
      Order Id: fc065683-d5f5-484b-ae42-a5b800febbe3

The orders were ordered by:
John Doe (660a6f29-650e-4380-99e0-a5b800febbde)
   Points: 100
   HasGoldStatus: True
   MemberSince: 1/1/2012 12:00:00 AM (Utc)
   CreditRating: Good
   AverageRating: 42.4242

   Orders:
      Order Id: 57314deb-e023-4e55-ac1e-a5b800febbe3
      Order Id: fc065683-d5f5-484b-ae42-a5b800febbe3

John Doe (660a6f29-650e-4380-99e0-a5b800febbde)
   Points: 100
   HasGoldStatus: True
   MemberSince: 1/1/2012 12:00:00 AM (Utc)
   CreditRating: Good
   AverageRating: 42.4242

   Orders:
      Order Id: 57314deb-e023-4e55-ac1e-a5b800febbe3
      Order Id: fc065683-d5f5-484b-ae42-a5b800febbe3

Press <ENTER> to exit...
