Apache POI PPT - 建立超連結

本章將學習如何在簡報中建立超連結。

建立超連結

可以使用 createHyperlink() 方法從 XSLFTextRun 類讀取簡報中的超連結。按照以下所示步驟在簡報中建立超連結。

如以下所示，使用 XMLSlideShow 類建立空簡報。−

XMLSlideShow ppt = new XMLSlideShow();

建立空幻燈片並在正文和內容佈局中建立文字框和幻燈片正文。

//create an empty presentation
XSLFSlideMaster slideMaster = ppt.getSlideMasters()[0];

//creating a slide with title and content layout
XSLFSlideLayout slidelayout = slideMaster.getLayout(SlideLayout.TITLE_AND_CONTENT);
XSLFSlide slide = ppt.createSlide(slidelayout);

//selection of body place holder
XSLFTextShape body = slide.getPlaceholder(1);

//clear the existing text in the slide
body.clearText();

建立文字執行物件並向其設定文字，如以下所示 −

XSLFTextRun textRun = body.addNewTextParagraph().addNewTextRun();
textRun.setText("Tutorials point");

如以下所示，使用 createHyperlink() 方法從 XSLFTextRun 類建立超連結 −

XSLFHyperlink link = textRun.createHyperlink();

如以下所示，使用 XSLFHyperlink 類的 setAddress() 方法設定超連結的連結地址 −

link.setAddress("https://tutorialspoint.tw/");

以下是建立簡報超連結的完整程式 −

import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;

import org.apache.poi.xslf.usermodel.SlideLayout;
import org.apache.poi.xslf.usermodel.XMLSlideShow;
import org.apache.poi.xslf.usermodel.XSLFHyperlink;
import org.apache.poi.xslf.usermodel.XSLFSlide;
import org.apache.poi.xslf.usermodel.XSLFSlideLayout;
import org.apache.poi.xslf.usermodel.XSLFSlideMaster;
import org.apache.poi.xslf.usermodel.XSLFTextRun;
import org.apache.poi.xslf.usermodel.XSLFTextShape;

public class CreatingHyperlinks {
   public static void main(String args[]) throws IOException {
      //create an empty presentation
      XMLSlideShow ppt = new XMLSlideShow();

      //getting the slide master object
      XSLFSlideMaster slideMaster = ppt.getSlideMasters().get(0);

      //select a layout from specified list
      XSLFSlideLayout slidelayout = slideMaster.getLayout(SlideLayout.TITLE_AND_CONTENT);

      //creating a slide with title and content layout
      XSLFSlide slide = ppt.createSlide(slidelayout);

      //selection of title place holder
      XSLFTextShape body = slide.getPlaceholder(1);

      //clear the existing text in the slid
      body.clearText();

      //adding new paragraph
      XSLFTextRun textRun = body.addNewTextParagraph().addNewTextRun();

      //setting the text
      textRun.setText("Tutorials point");

      //creating the hyperlink
      XSLFHyperlink link = textRun.createHyperlink();

      //setting the link address
      link.setAddress("https://tutorialspoint.tw/");

      //create the file object
      File file = new File("hyperlink.pptx");
      FileOutputStream out = new FileOutputStream(file);

      //save the changes in a file
      ppt.write(out);
      System.out.println("slide created successfully");
      out.close();
   }
}

將以上 Java 程式碼儲存為 CreatingHyperlinks.java，然後按如下所示從命令提示符處進行編譯和執行： −

$javac CreatingHyperlinks.java
$java CreatingHyperlinks

編譯並執行可生成以下輸出 −

slide created successfully

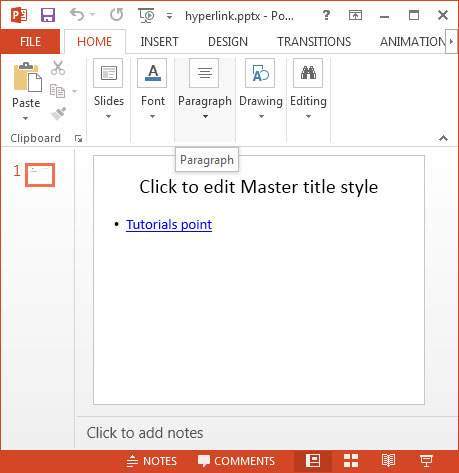

在正文中包含超連結的新增幻燈片如下所示 −
