Swing 示例 - 帶有垂直分割的拆分窗格

SplitPane 類允許在兩個面板之間設定可移動分割。

示例

import java.awt.BorderLayout;
import java.awt.FlowLayout;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JSplitPane;
import javax.swing.JTextField;

public class SwingTester {
   public static void main(String[] args) {
      createWindow();
   }

   private static void createWindow() {
      JFrame frame = new JFrame("Swing Tester");
      frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
      createUI(frame);
      frame.setSize(560, 200);
      frame.setLocationRelativeTo(null);
      frame.setVisible(true);
   }

   private static void createUI(final JFrame frame){
      JPanel buttonPanel = new JPanel(new FlowLayout());
      buttonPanel.add(new JButton("OK"));
      buttonPanel.add(new JButton("Cancel"));
      JPanel textBoxPanel = new JPanel(new FlowLayout());
      textBoxPanel.add(new JLabel("Name:"));
      textBoxPanel.add(new JTextField(20));
      JSplitPane splitPane = new JSplitPane(JSplitPane.VERTICAL_SPLIT, buttonPanel, textBoxPanel);
      splitPane.setOneTouchExpandable(true);
      splitPane.setDividerLocation(50);
      frame.getContentPane().add(splitPane, BorderLayout.CENTER);
   }
}

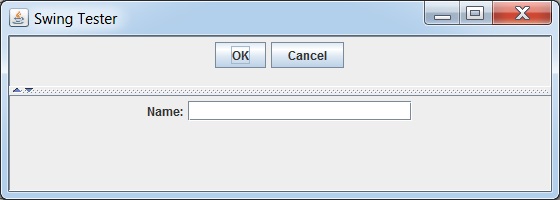

輸出
