如何在Android中實現TextInputLayout

在進入示例之前，我們應該瞭解Android中的TextInputLayout是什麼。TextInputLayout是由LinearLayout擴充套件而來。它將充當EditText的包裝器，併為EditText顯示平滑的提示動畫。

此示例演示瞭如何實現Android TextInputLayout。

步驟1 - 在Android Studio中建立一個新專案，轉到檔案⇒新建專案，並填寫所有必需的詳細資訊以建立一個新專案。

步驟2 - 將以下程式碼新增到res/layout/activity_main.xml中。

<?xml version = "1.0" encoding = "utf-8"?>
<LinearLayout xmlns:android = "http://schemas.android.com/apk/res/android"
   xmlns:tools = "http://schemas.android.com/tools"
   android:layout_width = "match_parent"
   android:layout_height = "match_parent"
   tools:context = ".MainActivity"
   android:background = "#dde4dd"
   android:orientation = "vertical">
   <android.support.design.widget.TextInputLayout
      android:layout_width = "match_parent"
      android:layout_height = "wrap_content"
      android:id = "@+id/layoutEmail"
      android:layout_marginTop = "8dp"
      android:layout_marginStart = "8dp"
      android:layout_marginEnd = "8dp"
      style = "@style/Widget.MaterialComponents.TextInputLayout.FilledBox">
      <android.support.design.widget.TextInputEditText
         android:layout_width = "match_parent"
         android:layout_height = "wrap_content"
         android:id = "@+id/email"
         android:hint = "Enter Email id"
         android:inputType = "textEmailAddress"/>
   </android.support.design.widget.TextInputLayout>
   <android.support.design.widget.TextInputLayout
      android:layout_width = "match_parent"
      android:layout_height = "wrap_content"
      android:id = "@+id/layoutPassword"
      android:layout_marginTop = "8dp"
      android:layout_marginStart = "8dp"
      android:layout_marginEnd = "8dp"
      style = "@style/Widget.MaterialComponents.TextInputLayout.FilledBox">
      <android.support.design.widget.TextInputEditText
         android:layout_width = "match_parent"
         android:layout_height = "wrap_content"
         android:id = "@+id/password"
         android:hint = "Password"
         android:inputType = "textPassword"/>
   </android.support.design.widget.TextInputLayout>
   <Button
      android:id = "@+id/click"
      android:layout_width = "wrap_content"
      android:layout_height = "wrap_content"
      android:layout_gravity = "center"
      android:text = "Click"></Button>
</LinearLayout>

在上面的程式碼中，我們給出了兩個TextInputEditText和一個按鈕。當您點選按鈕時，它將獲取EditText中的資料並在Toast上顯示。

步驟3 - 將以下程式碼新增到src/MainActivity.java中

package com.example.andy.myapplication;

import android.graphics.Point;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.TextureView;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {
   EditText email,password;
   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
      email = findViewById(R.id.email);
      password = findViewById(R.id.password);
      Button click = findViewById(R.id.click);
      click.setOnClickListener(new View.OnClickListener() {
         @Override
         public void onClick(View v) {
            if(!email.getText().toString().isEmpty()&&(!password.getText().toString().isEmpty())) {
               Toast.makeText(MainActivity.this, "you have entered email id " +                                     email.getText().toString() + "Password " + password.getText().toString(), Toast.LENGTH_LONG).show();
            } else {
               email.setError("Please Enter Email id");
               password.setError("Please Enter Pass word");
            }
         }
      });
   }
}

步驟4 - 開啟build.gradle並新增設計支援庫依賴項。

apply plugin: 'com.android.application'
android {
   compileSdkVersion 28
   defaultConfig {
      applicationId "com.example.andy.myapplication"
      minSdkVersion 15
      targetSdkVersion 28
      compileSdkVersion 28
      versionCode 1
      versionName "1.0"
      testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"
   }
   buildTypes {
      release {
         minifyEnabled false
         proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
      }
   }
}
dependencies {
   implementation fileTree(dir: 'libs', include: ['*.jar'])
   implementation 'com.android.support:appcompat-v7:28.0.0'
   implementation 'com.android.support:design:28.0.0'
   implementation 'com.android.support.constraint:constraint-layout:1.1.3'
   testImplementation 'junit:junit:4.12'
   androidTestImplementation 'com.android.support.test:runner:1.0.2'
   androidTestImplementation 'com.android.support.test.espresso:espresso-core:3.0.2'
}

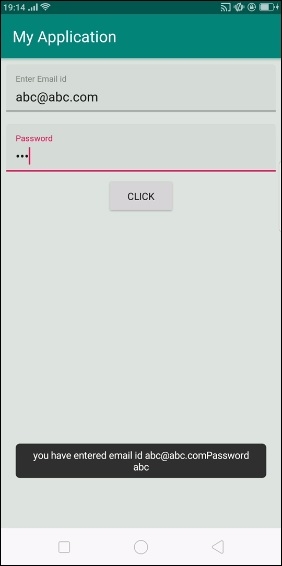

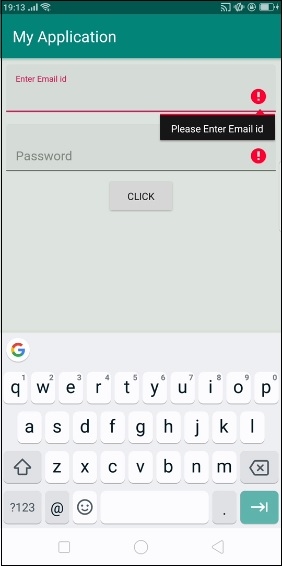

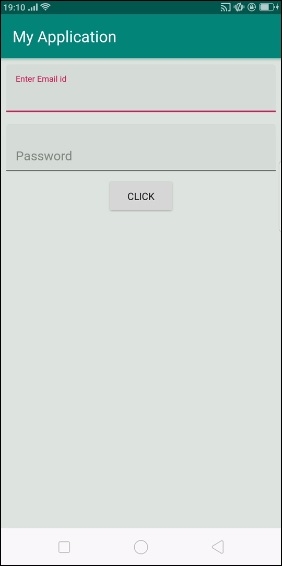

讓我們嘗試執行您的應用程式。我假設您已將您的實際Android移動裝置連線到您的電腦。要從Android Studio執行應用程式，請開啟專案的一個活動檔案並點選工具欄中的執行圖示。選擇您的移動裝置作為選項，然後檢查您的移動裝置，它將顯示您的預設螢幕 -
